Hyundai Elantra AD (2016-2020) Service Manual / Brake System / Brake System / Brake Booster Components and Components Location

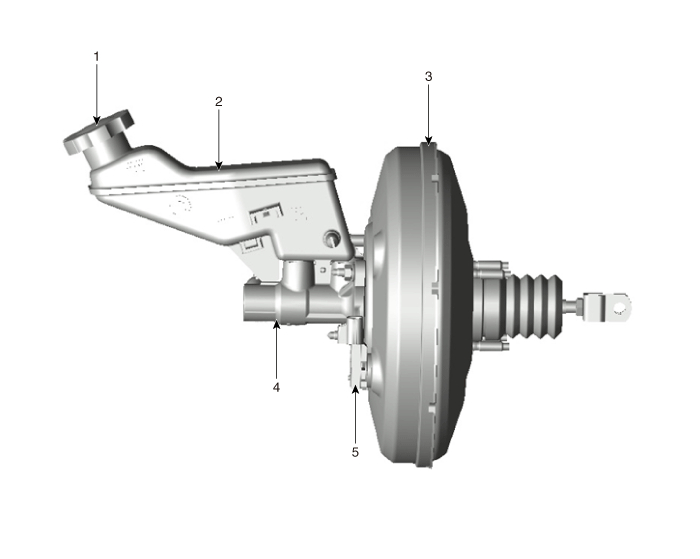

Components

1. Reservoir cap
2. Reservoir
3. Booster
4. Master cylinder
5. Booster pressure sensor

Repair procedures
Operation and Leakage Check Check all of the following items: ComponentProcedureBrake Booster (A)Check brake operation by applying the brakes during a test drive. If the brakes do not work prope ...

Brake Booster Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...
