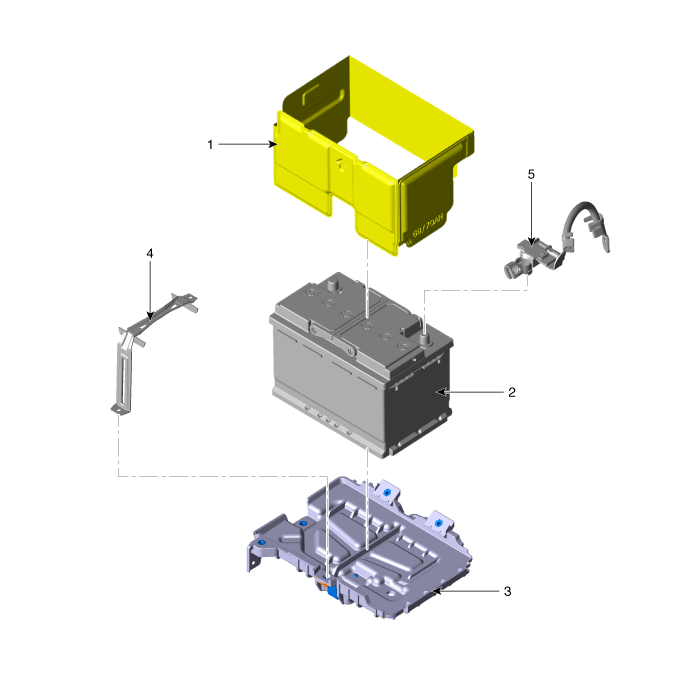

Components

1. Battery insulation pad
2. AMG Battery
3. Battery tray

4. Battery mounting bracket
5. Battery sensor

Battery Specifications

Specifications ?AGM60L-DIN ItemSpecificationModel typeAGM60L-DINCapacity [20HR/5HR] (AH)60/48 Cold Cranking Amperage (A)640 (SAE) 512 (EN)Reserve Capacity (Min)100 ...

Battery Repair procedures

Removal Battery 1. Turn the ignition switch OFF. 2. Disconnect the battery (-) terminal (A). 3. Remove the battery (+) terminal (B). 4. Remove the battery mouting bracket (A). ...
