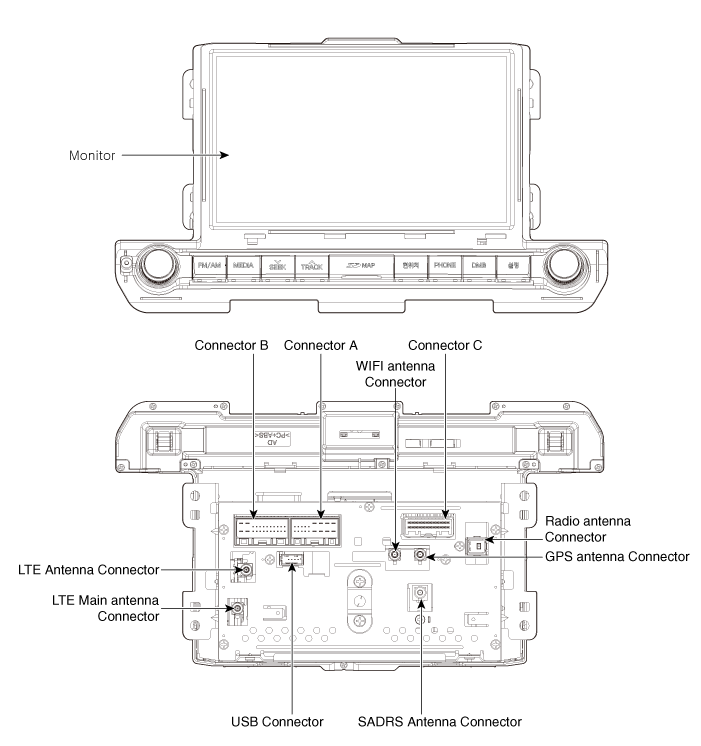

Hyundai Elantra: AVN System / AVN(Audio Video Navigation) head unit Components and Components Location

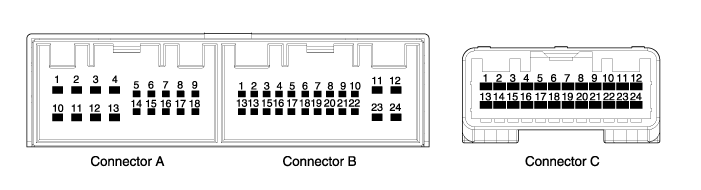

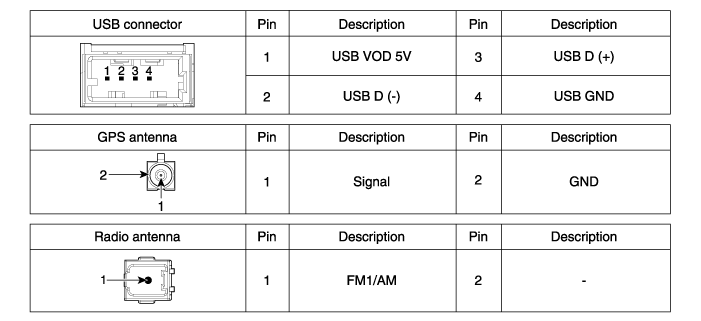

| Components |
| No | Connector A | Connector B | Connector C |
| 1 | - | Multmedia-CAN (High) | Chassis-CAN (Low) |
| 2 | - | - | Chassis-CAN (High) |
| 3 | - | - | - |
| 4 | - | Steering wheel remote controller | - |
| 5 | SPDIF Shield GND | - | - |
| 6 | SPDIF (+) | MTS keypad signal | - |
| 7 | - | - | - |
| 8 | Illumination (+) | AUX R input | - |
| 9 | - | Multimedia jack (GND) | - |
| 10 | - | MIC (+) | - |
| 11 | - | Battery (+) | Body-CAN (High) |
| 12 | - | Battery (+) | Body-CAN (Low) |
| 13 | - | Multmedia-CAN (Low) | - |
| 14 | IGN 1 (+) | Auto light | AIR BAG |
| 15 | SPDIF (-) | - | - |
| 16 | - | Vehicle speed | NAVI VOICE (-) |
| 17 | Illumination (-) | MTS keypad (GND) | NAVI VOICE (+) |
| 18 | Antenna B(+) | ACC | - |
| 19 | | AUX V (GND) | - |
| 20 | Multimedia jack (Detect) | - | |
| 21 | AUX L input | Camera_GND | |
| 22 | MIC (-) | Camera_Video GND | |
| 23 | GND | Camera_VIN | |
| 24 | GND | Carmera B(+) |
Description and Operation
Description
AVN System
The AVN system has improved information search and easiness
of manipulation for the driver by simplifying the system operation
experience and unifying the display of the ...
AVN(Audio Video Navigation) head unit Repair procedures
Removal
•
Take care not to scratch the cluster fascia panel and related parts.
•
Eject all the disc before removing the AVN head unit to prevent damaging the DVD ...
