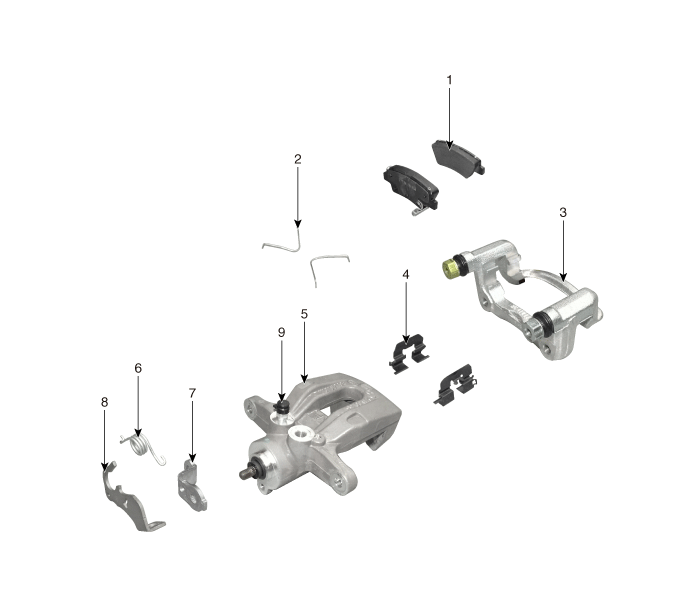

Components

1. Brake pad
2. Pad return spring
3. Caliper carrier
4. Pad retainer
5. Caliper body
6. Return spring
7. Stopper
8. Operating lever
9. Bleed screw

Front Disc Brake Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub . Tightening torque: 107.9 ~ 1 ...

Rear Disc Brake Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and tire (A) from front hub . Tightening torque: 107.9 ~ 127 ...
