Hyundai Elantra: Specifications, Consumer Information and Reporting Safety Defects / Vehicle Identification Number (VIN), Vehicle Certification Label
Vehicle Identification Number (VIN)
■ Frame number
The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertaining to its ownership, etc.

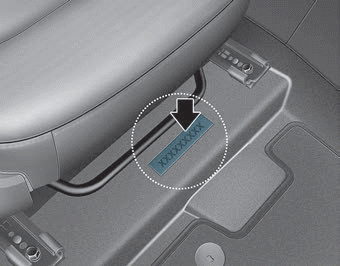

The number is punched on the floor under the passenger seat. To check the number, open the cover.
■ VIN label

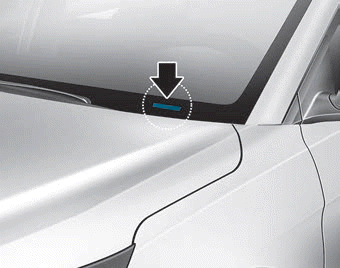

The VIN is also on a plate attached to the top of the dashboard. The number on the plate can easily be seen through the windshield from outside.
Vehicle Certification Label

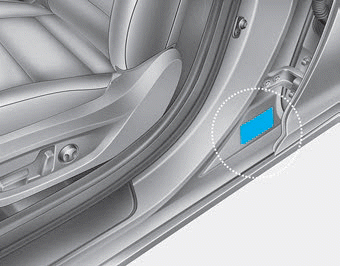

The vehicle certification label attached on the driver's side center pillar gives the Vehicle Identification Number (VIN).
