Hyundai Elantra: Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve(UD/B_VFS) Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Underdrive Brake Control Solenoid Valve(UD/B_VFS) Schematic Diagrams

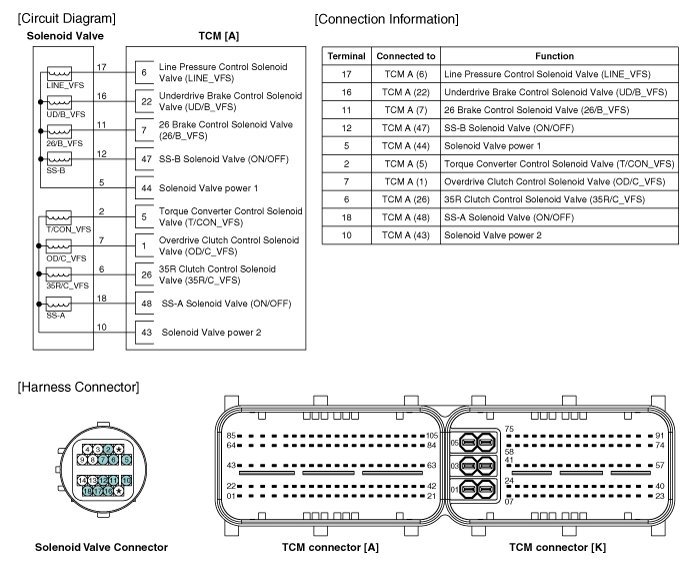

Circuit Diagram

Underdrive Brake Control Solenoid Valve(UD/B_VFS) Components and Components Location
Components Location 1. 26 Brake Control Solenoid Valve (26/B)2. 35R Clutch Control Solenoid Valve (35R/C)3. Underdrive Brake Control Solenoid Valve (UD/B)4. Overdrive Clutch Control Solenoid Valv ...

Underdrive Brake Control Solenoid Valve(UD/B_VFS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A). 4. M ...
