Hyundai Elantra: Sunroof / Sunroof opening and closing

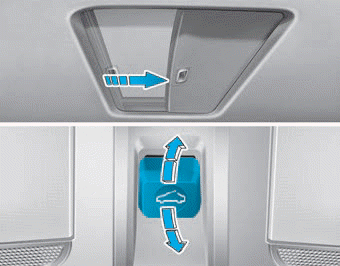

To open:
Press the sunroof control lever backward to the first detent position. Release the switch when you want the sunroof to stop.
To close:
Press the sunroof control lever forward to the first detent position. Release the switch when you want the sunroof to stop.
Sunroof
If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof
with the sunroof control switch located on the overhead console.
The sunroof can only be opened, closed, or tilted w ...
Sliding and Tilting the sunroof
Sliding the sunroof
Pressing the sunroof control lever backward or forward momentarily to the second
detent position completely opens or closes the sunroof even when the switch is released.
To st ...
