Hyundai Elantra: Convenient Features of Your Vehicle / Storage Compartment
WARNING
Never store cigarette lighters, propane cylinders, or other flammable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle is exposed to hot temperatures for extended periods.
WARNING
ALWAYS keep the storage compartment covers closed securely while driving. Items inside your vehicle are moving as fast as the vehicle. If you have to stop or turn quickly, or if there is a crash, the items may fly out of the compartment and may cause an injury if they strike the driver or a passenger.
NOTICE
To avoid possible theft, do not leave valuables in the storage compartments.
Climate Control Additional Features
Automatic Ventilation (if equipped)
When the ignition switch is in the ON position or when the engine is running
and temperature is below 59°F (15°C) with the recirculated air position selected
...
Center Console Storage, Sliding Armrest

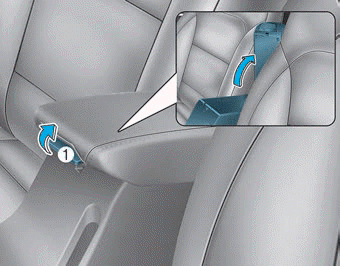

Center Console Storage
To open :
Grab and hold the latch (1) on the arm rest then lift the lid.

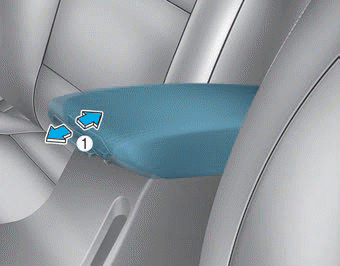

Sliding Armrest
To move the armrest forward:
Grab and hold the latch (1) on the arm rest then s ...
