Hyundai Elantra: Storage Compartment / Glove Box

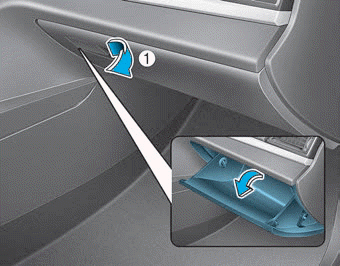

To open:
Pull the lever (1).
WARNING
ALWAYS close the glove box door after use.
An open glove box door can cause serious injury to the passenger in an accident, even if the passenger is wearing a seat belt.
Center Console Storage, Sliding Armrest
Center Console Storage
To open :
Grab and hold the latch (1) on the arm rest then lift the lid.
Sliding Armrest
To move the armrest forward:
Grab and hold the latch (1) on the arm rest then s ...
Sunglass Holder
To open:
Push and release the cover and the holder will slowly open. Place your sunglasses
in the compartment door with the lenses facing out.
To close:
Push back into position. Make sure the s ...
Other information:
Hyundai Elantra AD (2016-2020) Service Manual: Instrument Cluster Components and Components Location
Components
[General Standard Type (3.5" OLED)]
[MONO Type (3.5")]
[General Super Vision Type (4.2" LCD)]
Connector Pin Information
NoDescriptionNoDescription1GND21Trip switch (-)2Illumination (-)22Trip switch 1 (+)3Rheostat switch (Down)_Input23Trip switch 2 (+)4Rheostat switch (Up)_Input24-5 ...
Hyundai Elantra AD (2016-2020) Service Manual: AUX jack Description and Operation
Description
The multimedia jack on the console upper cover is for
customers who like to listen to external portable music players like the
MP3 etc., through the vehicle's sound system when it is linked to this
jack. The customer has this added option.
In case of distortions from media conn ...
