Hyundai Elantra: Charging System / Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Electrical System / Charging System / Schematic Diagrams

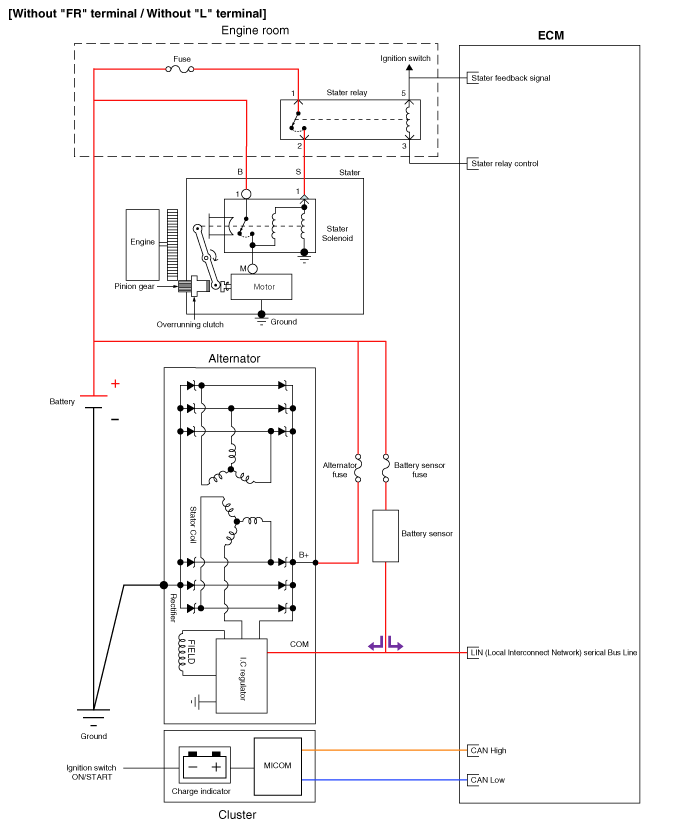

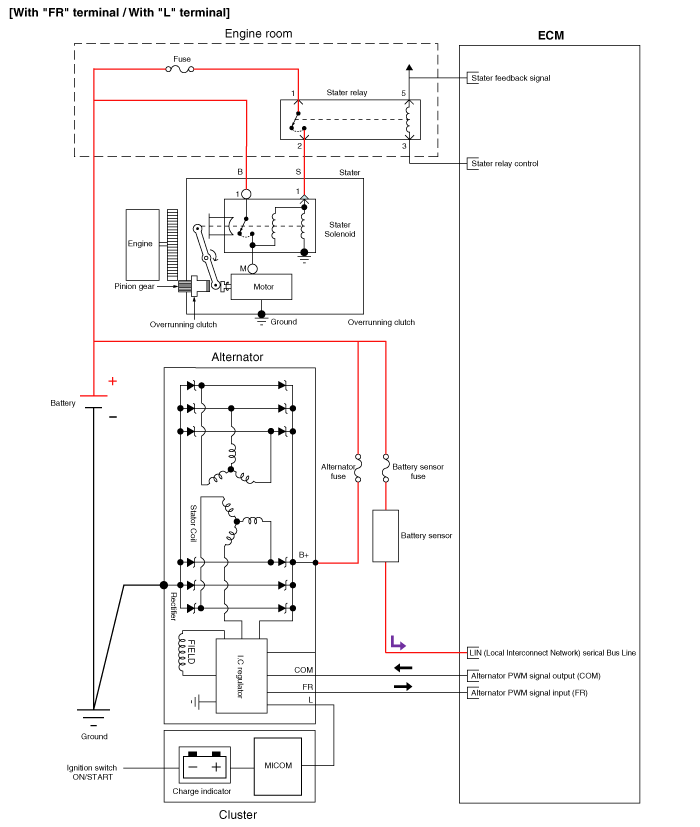

Circuit Diagram
