Hyundai Elantra: Interior Lights / Rear lamp, Trunk room lamp
Rear lamp
Rear Room Lamp (
) :
Press this switch to turn the room lamp on and off.

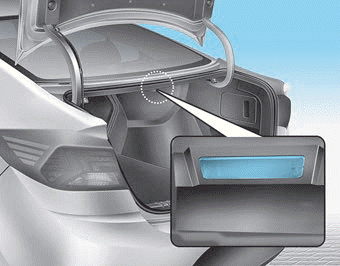

Trunk room lamp
The trunk room lamp comes on when the trunk is opened.
NOTICE
The trunk lamp comes on as long as the trunk lid is open.To prevent unnecessary charging system drain, close the trunk lid securely after using the trunk.
