Hyundai Elantra: Seat Belt Restraint System / Rear center seat belt

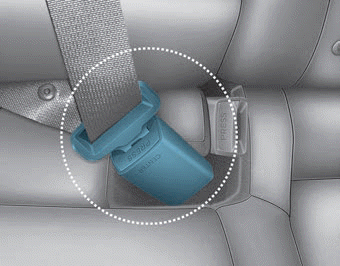

When using the rear center seat belt, the buckle with the "CENTER" mark must be used.
