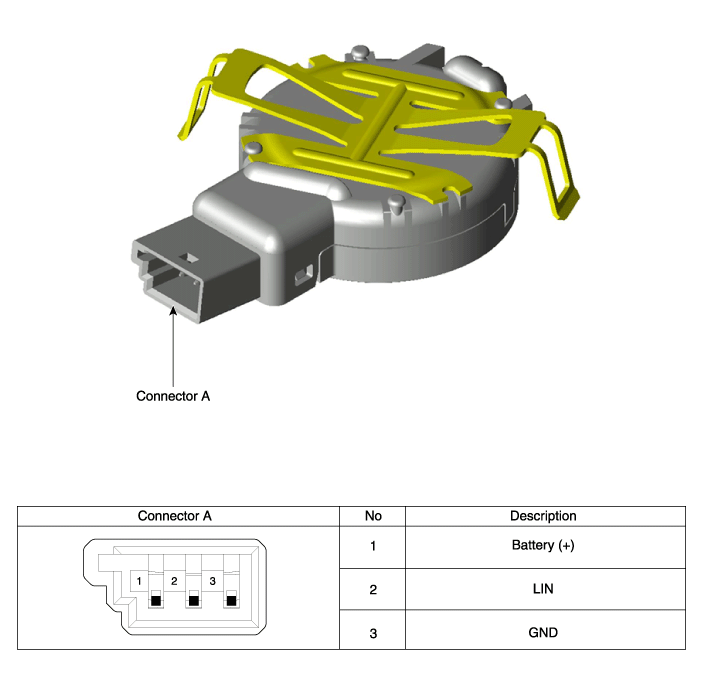

Hyundai Elantra: Windshield Wiper/Washer / Rain Sensor Components and Components Location

Components and Components Location

Front Washer Motor Repair procedures
Inspection Front Washer Motor 1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.     • Before filling the reservoir tank with wa ...

Rain Sensor Schematic Diagrams
Circuit Diagram ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Multimedia Jack Repair procedures
Removal 1. Disconnect the battery (-) terminals. 2. Remove the floor console assembly. (Refer to Body - "Floor Console Assembly") 3. Remove the multimedia jack (A) from the console under cover after releasing the fixed hooks (B). Installation 1. Connect the multimedia jack connecto ...

Hyundai Elantra AD (2016-2020) Service Manual: Alternator Schematic Diagrams
Circuit Diagram     • COM signal - When controlling the voltage generated, the ECM sends the target voltage data to the alternator via a PWM signal.(High voltage: 4V or higher, low voltage: 2V or lower) • FR signal - The transistor activation signal inside t ...
