Hyundai Elantra: Cooling System / Radiator Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cooling System / Radiator Components and Components Location

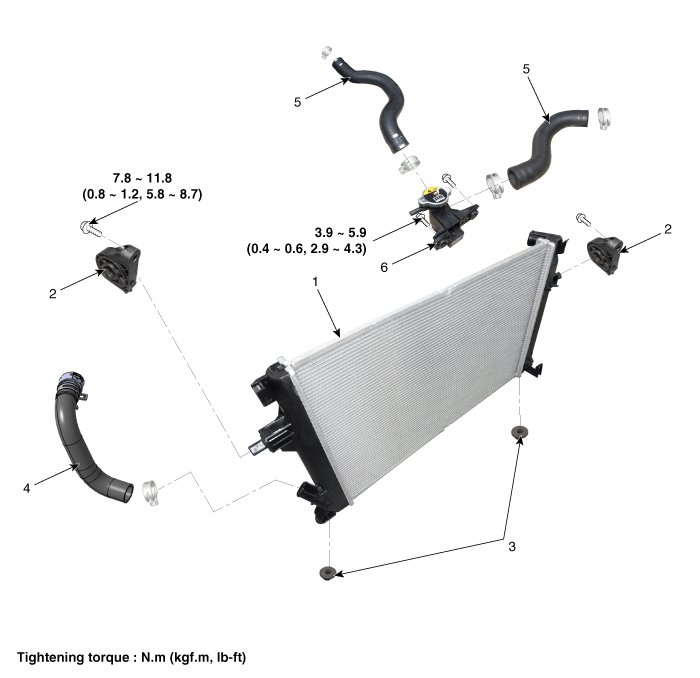

Components

1. Radiator assembly
2. Radiator upper mounting bracket
3. Mounting insulator

4. Radiator lower hose quick connector
5. Radiator upper hose
6. Filler neck assembly
