Hyundai Elantra: Power Door Mirrors / Power Door Mirror Actuator Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator Components and Components Location

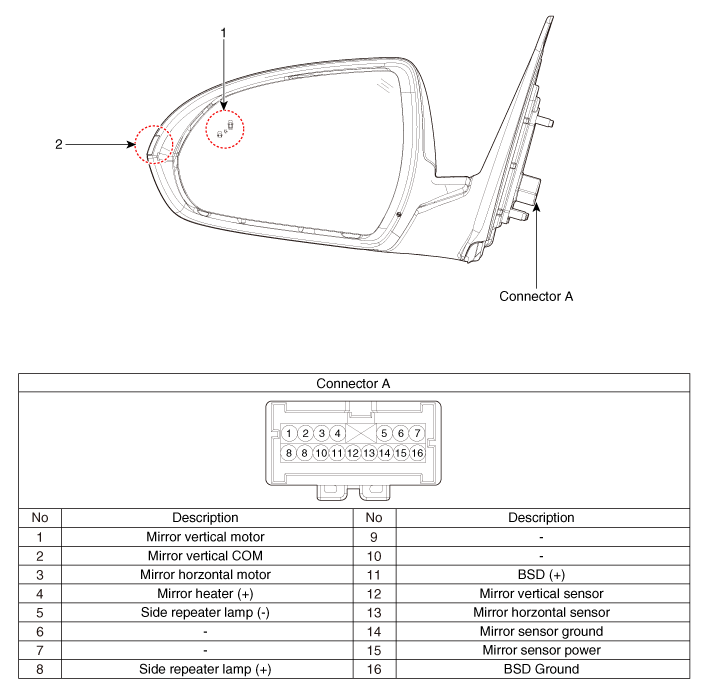

Components

1. BSD Indicator
2. Side repeater lamp

Power Door Mirror Switch Repair procedures
Inspection [Power Window Switch] 1. Disconnect the negative (-) battery terminal. 2. Remove the driver door trim. (Refer to Body - "Front Door Trim") 3. Disconnect the power mirror switc ...

Power Door Mirror Actuator Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door quadrant inner cover (A). 3. Disconnect the power door mirror connector from the harness. 4. Apply ...
