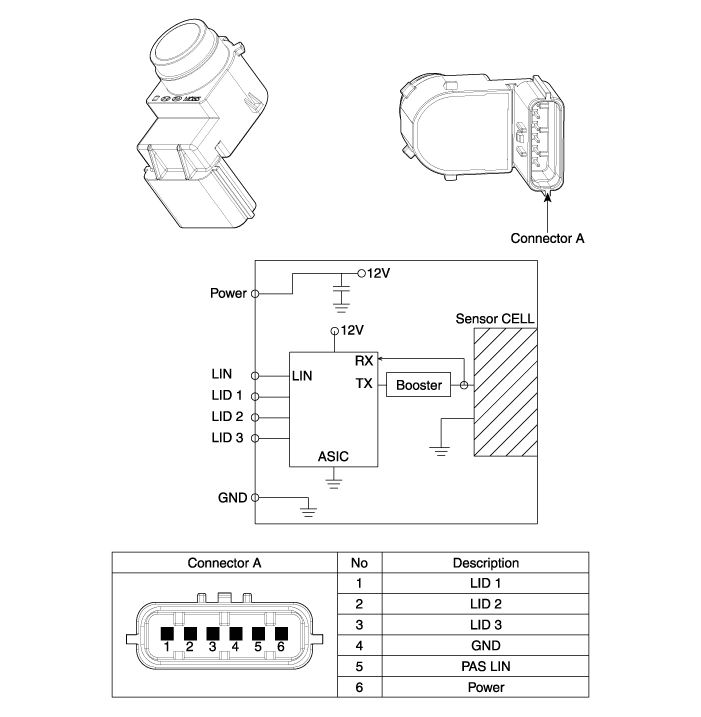

Component

Description and Operation

System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or driving at low speed. The sensor uses ultrasonic waves to de ...

Parking Assist Sensor Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front / rear bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover") 3. Disconne ...
