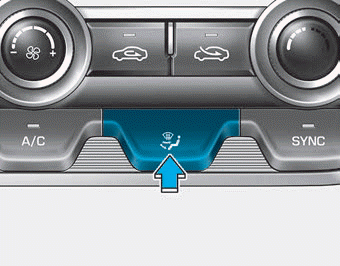

The mode selection button controls the direction of the air flow through the ventilation system.

The air flow outlet direction is cycled as follows:

Hyundai Elantra. Mode selection

Face-Level (B, D)

Hyundai Elantra. Mode selection

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Bi-Level (B, C, D, E)

Hyundai Elantra. Mode selection

Air flow is directed towards the face and the floor.

Floor-Level (A, C, D, E)

Hyundai Elantra. Mode selection

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.

Floor & Defrost (A, C, D, E)

Hyundai Elantra. Mode selection

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

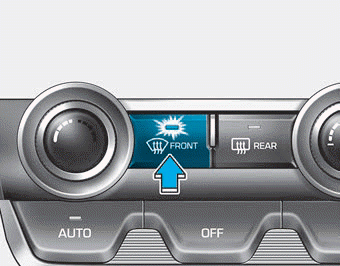

Hyundai Elantra. Mode selection

Defrost-Level (A, D)

Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters.
