Hyundai Elantra: Engine Control System / Knock Sensor (KS) Schematic Diagrams

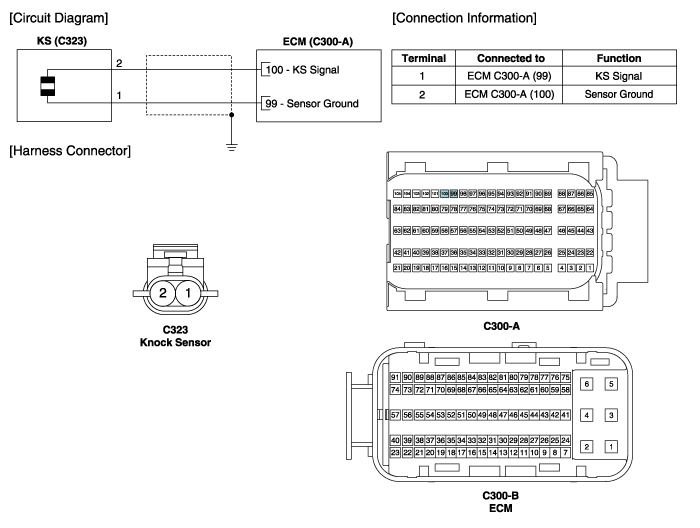

Circuit Diagram

Knock Sensor (KS) Specifications
Specification ItemSpecificationCapacitance (pF)850 ~ 1,150 ...

Knock Sensor (KS) Repair procedures
Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the knock sensor connector (A). 3. Remove the intake manifold. (Refer to Engine Mech ...
