Hyundai Elantra: Steering wheel / Heated Steering wheel Schematic Diagrams
Hyundai Elantra AD (2016-2020) Service Manual / Steering System / Steering wheel / Heated Steering wheel Schematic Diagrams

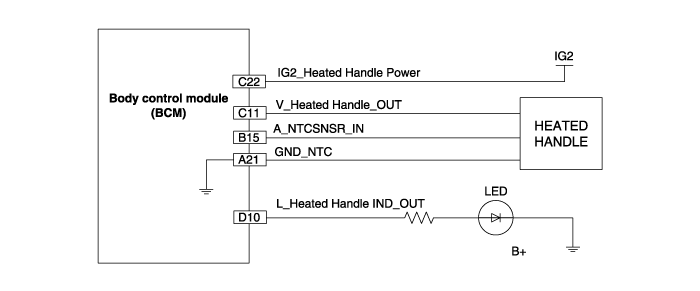

| System Circuit Diagram |
| Body control unit |
| Heated steering wheel pad |
| Heated steering wheel switch |
| Termainal function |

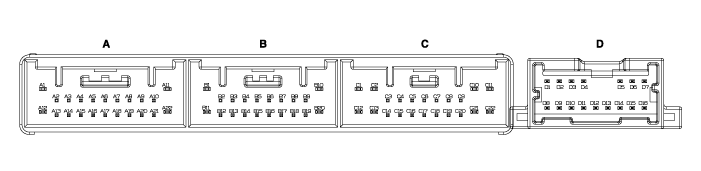

| Body contorl unit |
| Pin | Function |
| C22 | Ignition 2_Heated handle power |
| C11 | Heated handle |
| A21 | NTC (-) |
| B15 | NTC (+) |
| D10 | Heated handle IND. |

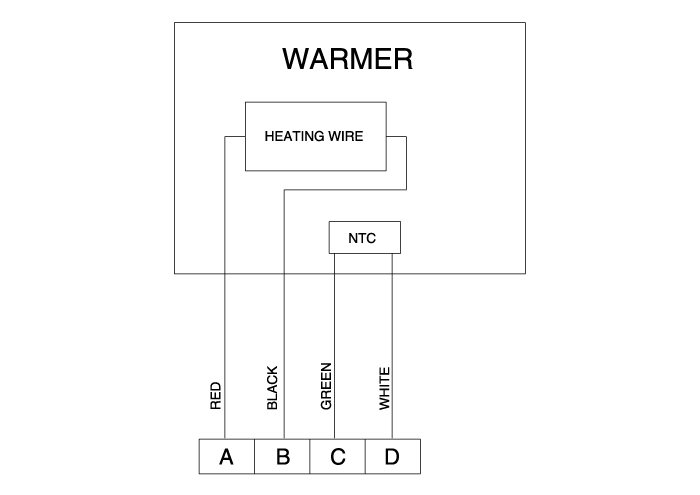

| Heated steering wheel pad |
| Housing | Pin | Function | Wire color |
| Pad | A | Ground | RED |
| B | HEATER | BLACK | |
| C | NTC+ | GREEN | |
| D | NTC- | WHITE |

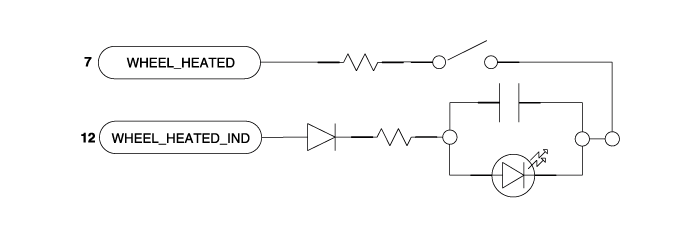

| Heated steering wheel switch |
| Pin | Function |
| 7 | Wheel heated |
| 12 | Wheel heated IND. |
Heated Steering wheel Specifications
Specifications
ItemSpecificationVoltage13.5 VHeated pad resistance1.7 ~ 0.2 ? ± 0.2 ? NTC resistance10.0 k? ± 10% (25°C)
...
Heated Steering wheel Repair procedures
Removal
Heated steering wheel switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the floor console upper complete assembly.
(Refer to Body - "Floor Console Assembly")
3.
...
