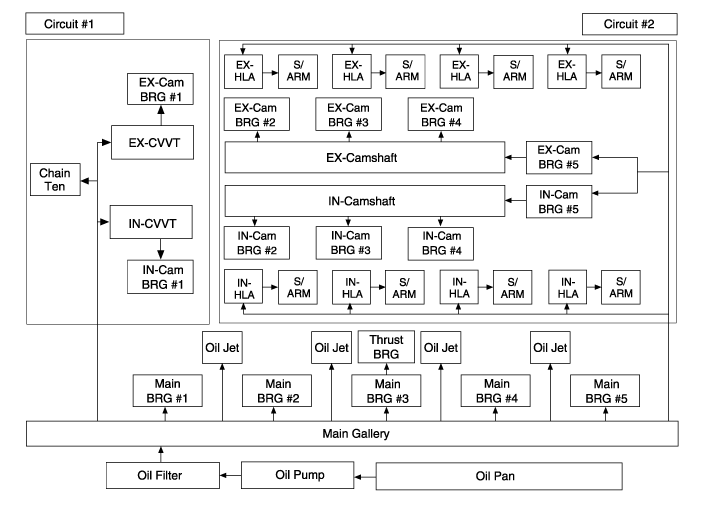

Hyundai Elantra: Lubrication System / Flow Diagram

Engine Oil Schemetics

Components and Components Location
Components 1. Timing chain cover2. Outer roter3. Inner roter4. Oil pump cover5. Relief plunger6. Relief spring7. Relief plug8. O-ring (suction side)9. O-ring (discharge side)10. Oil screen gasket ...

Engine Oil Repair procedures
Oil And Filter Replacement     • Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation ...
