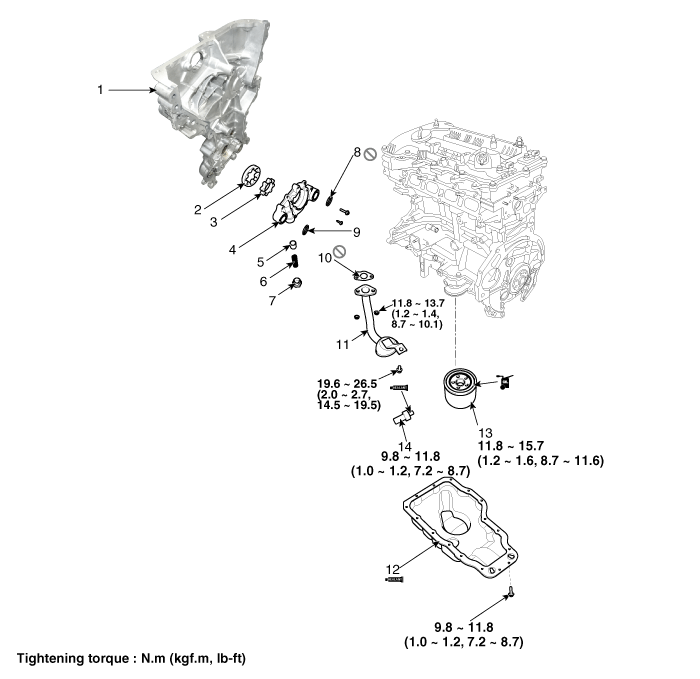

Components

1. Timing chain cover
2. Outer roter
3. Inner roter
4. Oil pump cover
5. Relief plunger
6. Relief spring
7. Relief plug
8. O-ring (suction side)
9. O-ring (discharge side)
10. Oil screen gasket
11. Oil screen
12. Oil pan
13. Oil filter
14. Oil pressure switch (OPS)

Lubrication System
...

Flow Diagram
Engine Oil Schemetics ...
