Hyundai Elantra: Body (Interior and Exterior) / Floor Carpet. Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Floor Carpet. Repair procedures

Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the floor console assembly. (Refer to Floor Console - "Floor Console Assembly")

2.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

3.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

4.	Remove the cowl side trim. (Refer to Interior Trim - "Cowl Side Trim")

5.	Remove the center pillar lower trim. (Refer to Interior Trim - "Center Pillar Trim")

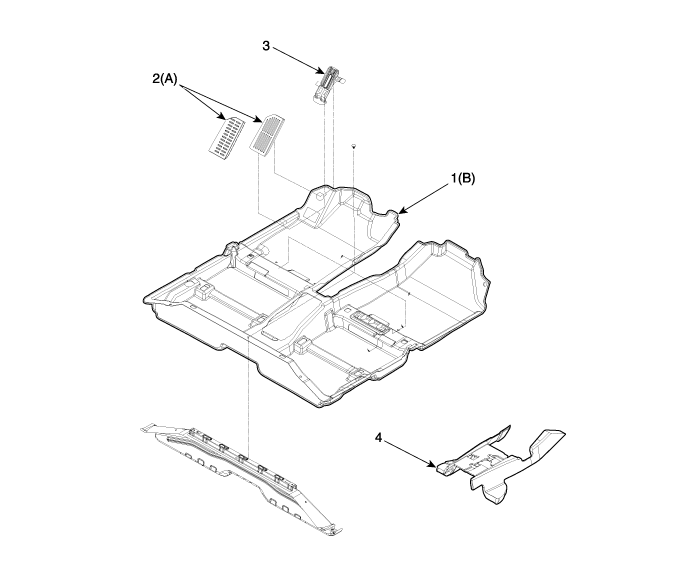

6.	Remove the footrest (A).

7.	Remove the floor carpet assembly (B).

To intall, reverse the removal procedure.

•	Replace any damaged clips (or pin-type retainers).

1. Front floor carpet assembly
2. Footrest

3. Footrest bracket
4. Front tunnel pad
