Hyundai Elantra: Light / Exterior Lights

Lighting control

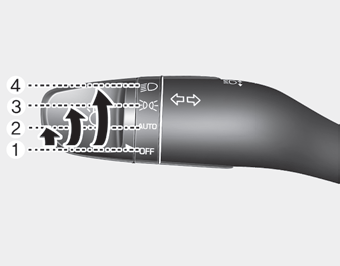

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

Hyundai Elantra. Exterior Lights

1. OFF position
2. AUTO headlamp position (if equipped)
3. Parking lamp position
4. Headlamp position

Daytime running light (DRL)

The Daytime Running Lights (DRL) can make it easier for others to see the front of your vehicle during the day, especially after dawn and before sunset.

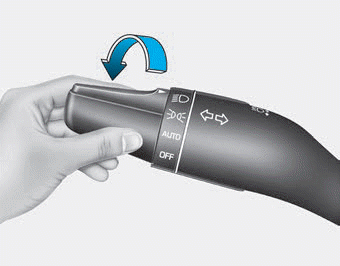

The DRL system will turn the dedicated lamp OFF when :

Hyundai Elantra. Exterior Lights

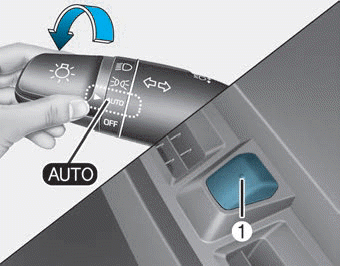

AUTO light position (if equipped)

The parking lamp and headlamp will be turned ON or OFF automatically depending on the amount of light outside the vehicle.

Even with the AUTO light feature in operation, it is recommended to manually turn ON the lamps when driving at night or in a fog, driving in the rain, or when you enter dark areas, such as tunnels and parking facilities.

NOTICE

Hyundai Elantra. Exterior Lights

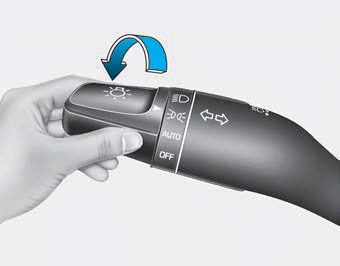

Parking lamp position (Hyundai Elantra. Exterior Lights)

The parking lamp, license plate lamp and instrument panel lamp are turned ON.

Hyundai Elantra. Exterior Lights

Headlamp position (Hyundai Elantra. Exterior Lights)

The headlamp, parking lamp, license plate lamp and instrument panel lamp are turned ON.

Information

The ignition switch must be in the ON position to turn on the headlamp.

Light
...

High beam operation
To turn on the high beam headlamp, push the lever away from you. The lever will return to its original position. The high beam indicator will light when the headlamp high beams are switched on. ...
