Hyundai Elantra: Blind-spot Collision Warning (BCW) / Detecting Sensor

Hyundai Elantra. Detecting Sensor

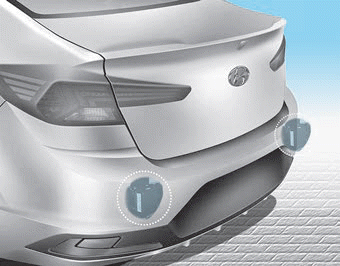

The rear radars are located inside the rear bumper for detecting the side and rear areas. Always keep the rear bumper clean for proper operation of the system.

NOTICE
