Hyundai Elantra: Inside Rearview Mirror / Day/night rearview mirror

Hyundai Elantra. Day/night rearview mirror

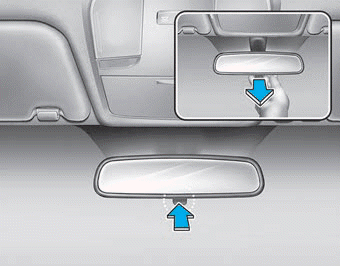

Make this adjustment before you start driving and while the day/night lever is in the day position.

Pull the day/night lever towards you to reduce glare from the headlights of the vehicles behind you during night driving.

Remember that you lose some rearview clarity in the night position.
