Hyundai Elantra: Cruise Control System / Cruise Control Switch Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch Schematic Diagrams

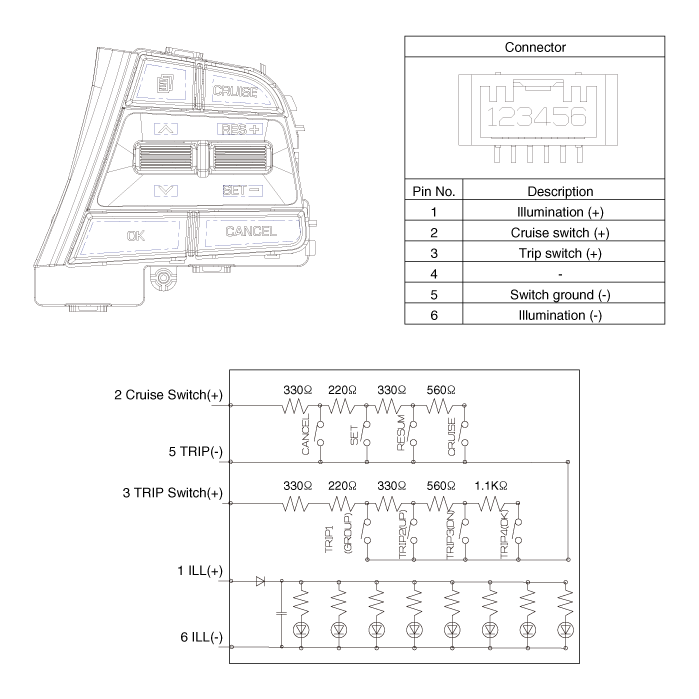

Circuit Diagram

Cruise Control Switch Components and Components Location

Components 1. Remote control switch (LH)2. Remote control switch (RH) ...

Cruise Control Switch Repair procedures

Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the steering wheel assembly. 3. Remove the screws from the steering back cover (A). 4. ...
