Hyundai Elantra: Engine Control System / Crankshaft Position Sensor (CKPS) Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Schematic Diagrams

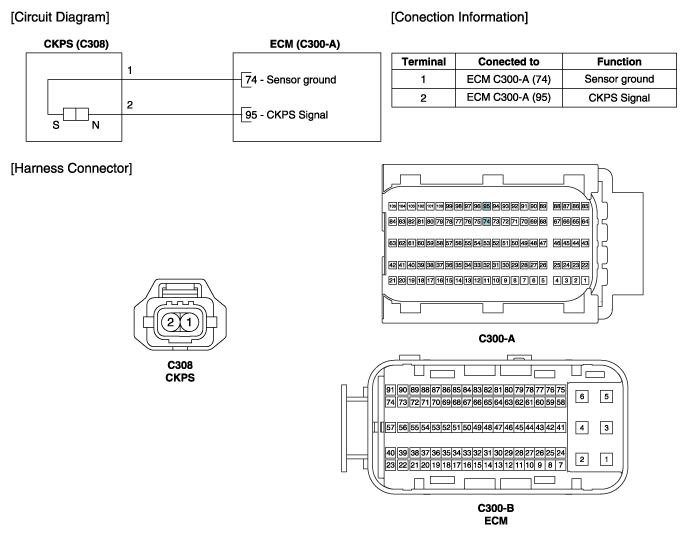

Circuit Diagram

Crankshaft Position Sensor (CKPS) Troubleshooting
Waveform ...

Crankshaft Position Sensor (CKPS) Repair procedures
Inspection 1. Check signal waveform of CKPS and CMPS using a scan tool. Specification : Refer to "Waveform" Removal 1. Turn the ignition switch OFF and disconnect the battery negative ...
