Hyundai Elantra: Timing System / Crankshaft Damper Pulley Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Timing System / Crankshaft Damper Pulley Components and Components Location

Components

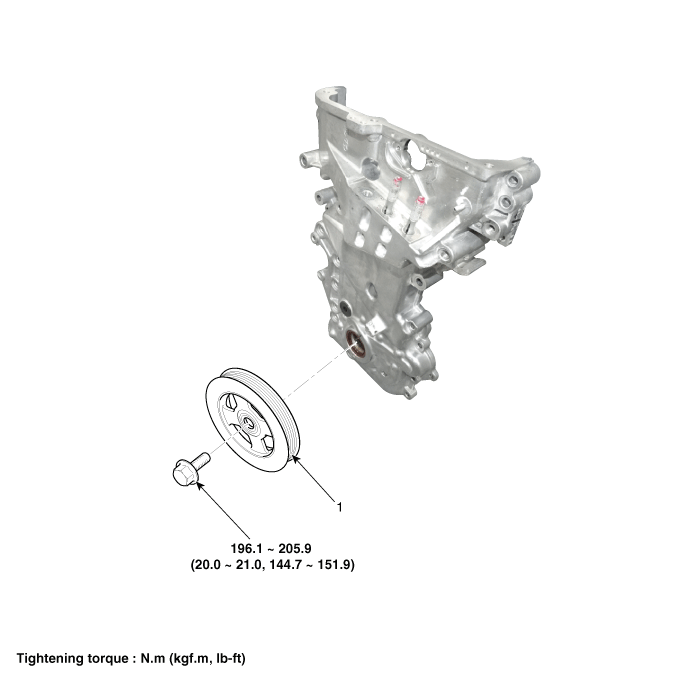

1. Crankshaft damper pulley

Drive Belt Tensioner Repair procedures
Removal and Installation 1. Disconnect the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt tensioner (A). Tightening torque : center bolt : 29.4 ~ 41.2 N.m (3 ...

Crankshaft Damper Pulley Repair procedures
Removal and Installation 1. Remove the RH front wheel. (Refer to Suspension System - "Wheel") 2. Remove the drive belt. (Refer to Timing System - "Drive Belt") 3. Remove the engine room ...
