Hyundai Elantra: Front / Rear Parking Assist System / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Front / Rear Parking Assist System / Components and Components Location

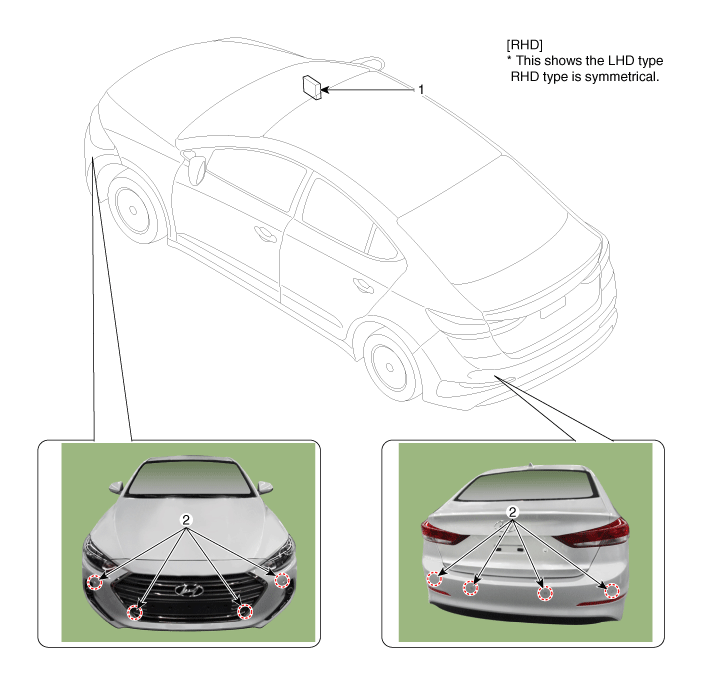

Component Location

1. BCM (Body Control Module)

2. Ultrasonic sensor

•	Rear parking assist control unit function is built in BCM (Body Control Module).

Specifications

Specification ItemSpecificationUltrasonic sensorVoltage ratingDC 12VDetecting rangeF PAS : 100 / 60 /30cmR PAS : 120 / 60 /30cmOperation voltageDC 9 ~ 16VOperation currentMAX 350mAOperation tempe ...

Description and Operation

System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or driving at low speed. The sensor uses ultrasonic waves to de ...
