Hyundai Elantra: Power Door Mirrors / Components and Components Location
| Component Location |

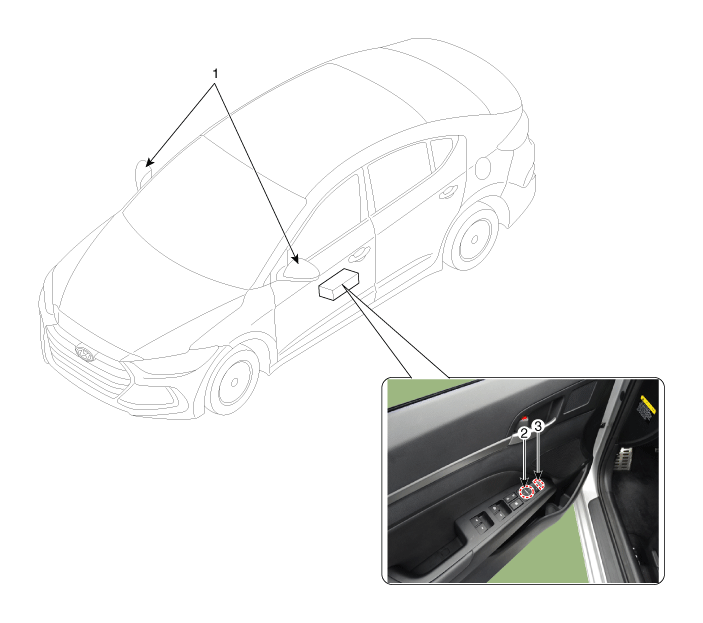

| 1. Power door mirror 2. Power door mirror switch | 3. Power folding mirror switch |
Power Door Mirror Switch Components and Components Location
Components
...
