Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Cowl Top Cover / Components and Components Location

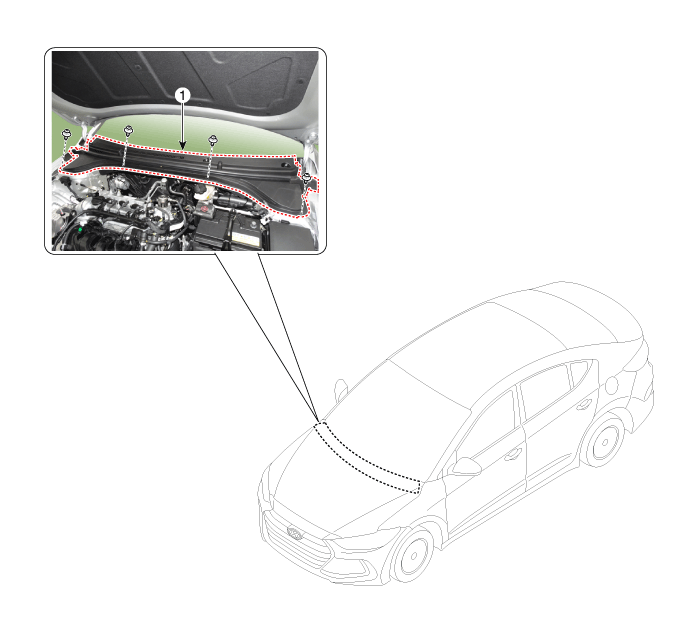

Component Location

1. Cowl top cover

Repair procedures

Replacement 1. Remove the plug hole. 2. Loosen the mounting nuts and remove the wiper arm (A). Tightening torque : 22.6 ~ 26.5 N.m (2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lb-ft) 3. Using a scr ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Evaporator Core Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and blower assembly. (Refer to Heater - "Heater Unit") 3. Remove the heater unit lower case (A) after loosening the mounting screws. 4. Pull out the evaporator core (A) from the heater unit. 5. T ...

Hyundai Elantra AD (2016-2020) Service Manual: Idler Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the idler (A). Tightening torque : 39.2 ~ 49.0N.m (4.0 ~ 5.0kgf.m, 28.9 ~ 36.2lb-ft) 3. Install in the reverse order of removal. Inspection Check the idler for excessive oil le ...
