Hyundai Elantra: ABS(Anti-Lock Brake System) / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Brake System / ABS(Anti-Lock Brake System) / Components and Components Location

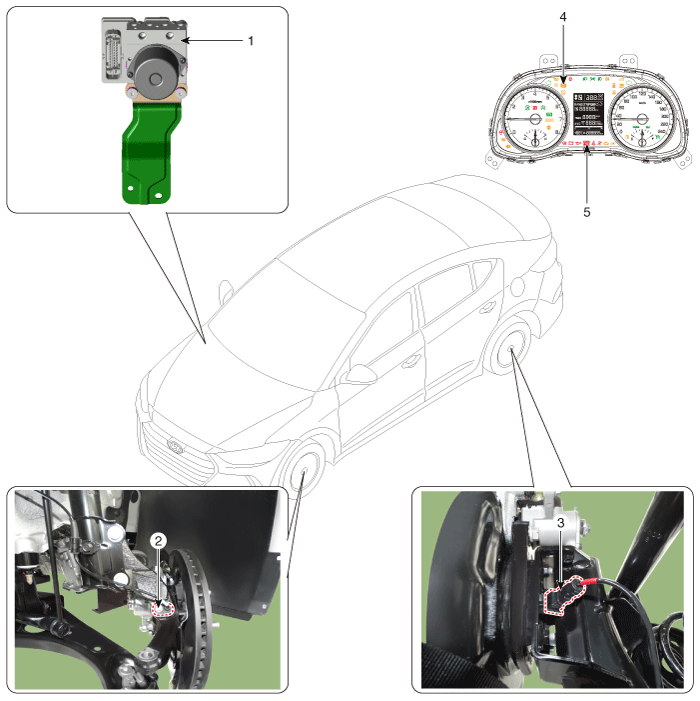

Components

1. ABS Control Module(HECU)
2. Front Wheel Speed Sensor
3. Rear Wheel Speed Sensor

4. ABS Warning lamp
5. EBD / Parking brake warning lamp
