Hyundai Elantra: Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

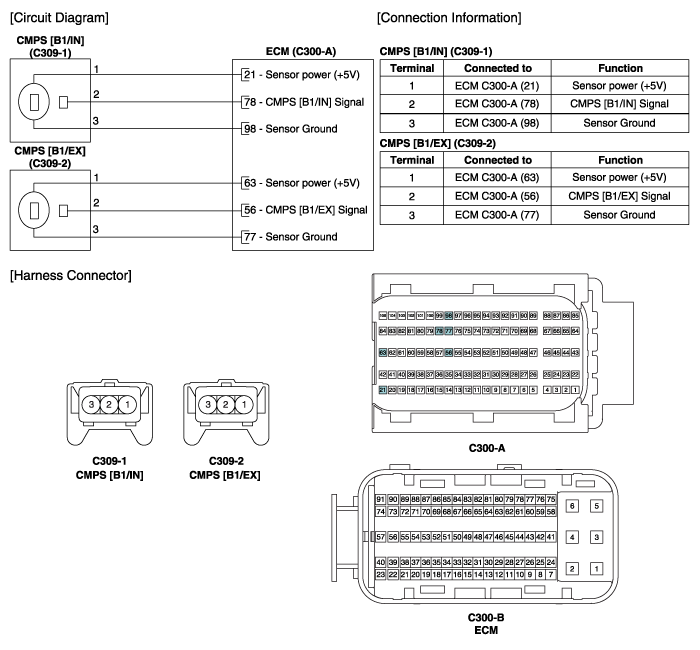

Circuit Diagram

Camshaft Position Sensor (CMPS) Troubleshooting
Wave Form ...

Camshaft Position Sensor (CMPS) Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification : Refer to "Wave Form" Removal     • DON’T remove the camshaft positi ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: 26 Brake Control Solenoid Valve(26/B_VFS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A). 4. Measure resistance between sensor signal terminal and sensor ground terminal. 5. Check that the ...

Hyundai Elantra AD (2016-2020) Service Manual: Manifold Absolute Pressure Sensor (MAPS) Description and Operation
Description Manifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and is installed on the surge tank. It senses absolute pressure of the surge tank and transfers the analog signal proportional to the pressure to the ECM. By using this signal, the ECM calculates the intak ...
