Hyundai Elantra: AVN System / AVN Remote Controller Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / AVN System / AVN Remote Controller Schematic Diagrams

Circuit Diagram

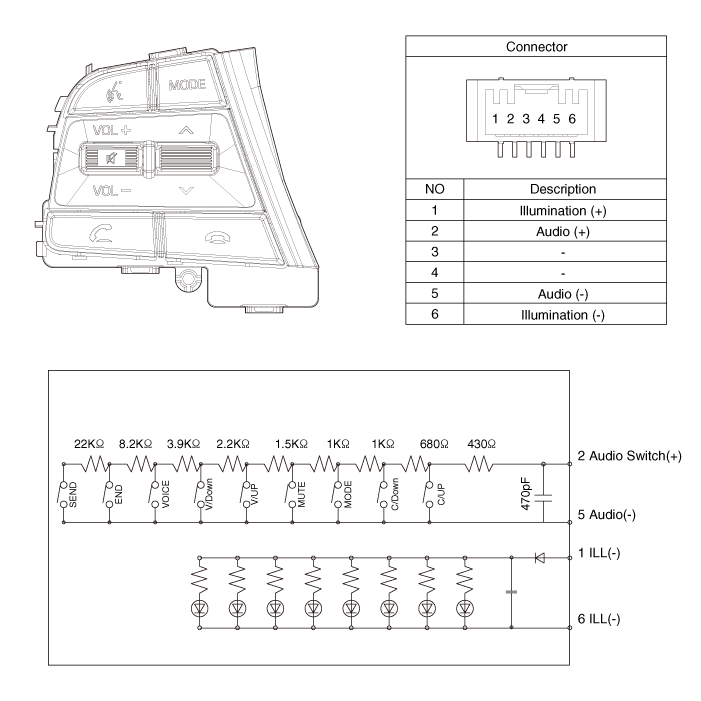

[Audio + B/Tooth + Voice]

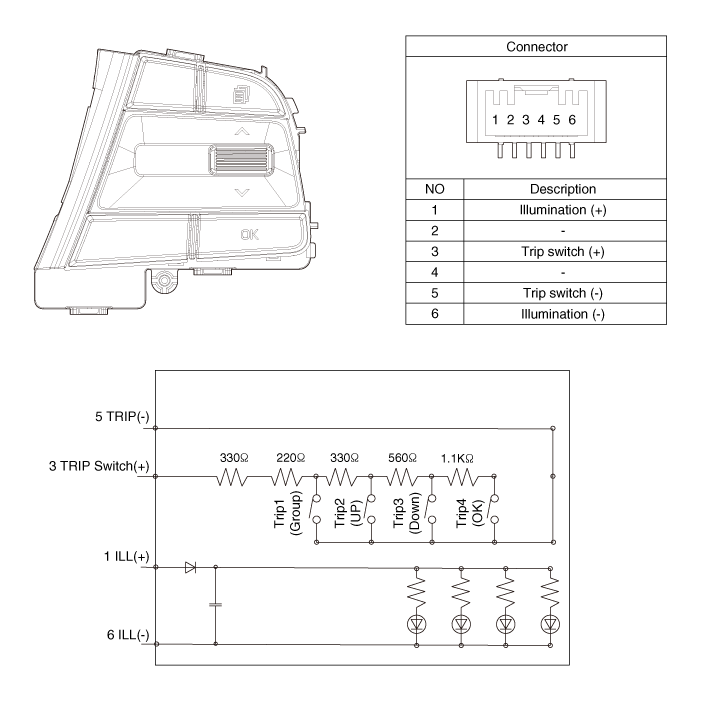

[Trip]

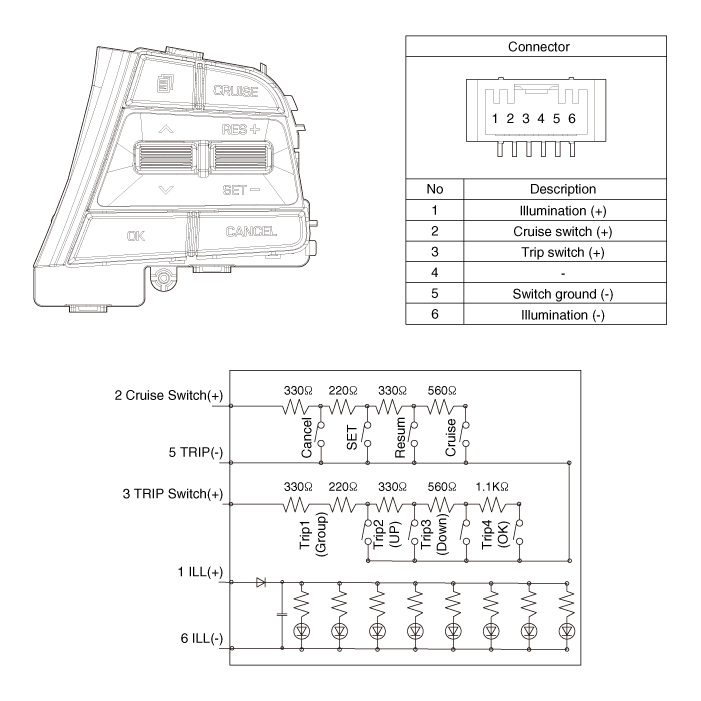

[Trip / Cruise]

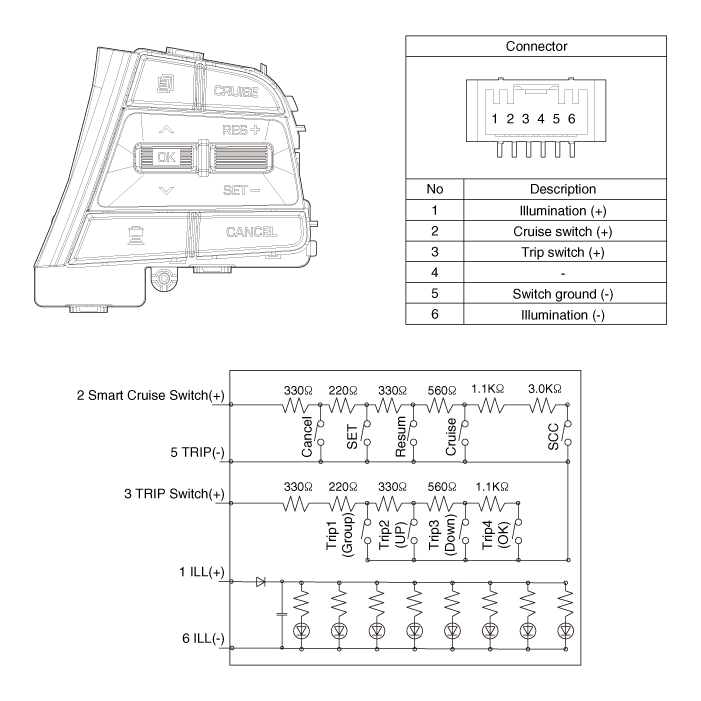

[Trip / Cruise/ Smart Cruise]
