Hyundai Elantra: Automatic Transaxle System / Automatic Transaxle Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Automatic Transaxle System / Automatic Transaxle Components and Components Location

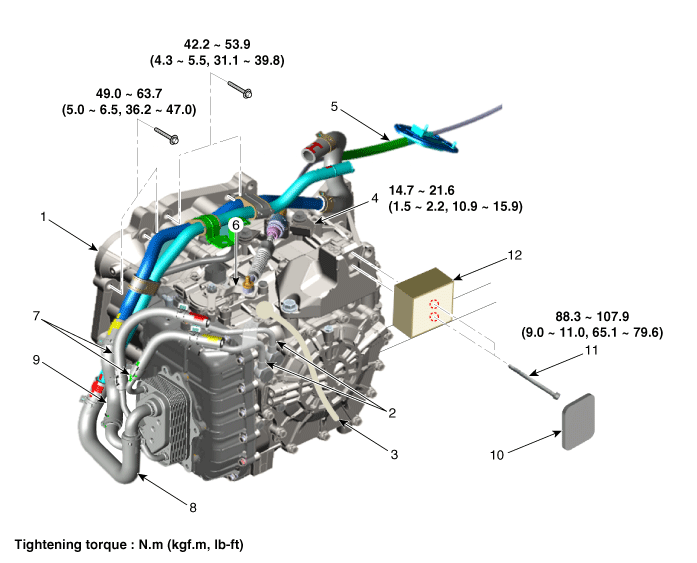

Components Location(1)

1. Automatic transaxle assembly
2. ATF cooler tube
3. Ground line
4. Shift cable mounting bracket
5. Shift cable
6. Inhibitor switch & manual control lever

7. ATF cooler tube
8. Cooling hose (in)
9. Cooling hose (out)
10. Cover
11. Support bracket mounting bolt
12. Automatic transaxle mounting bracket

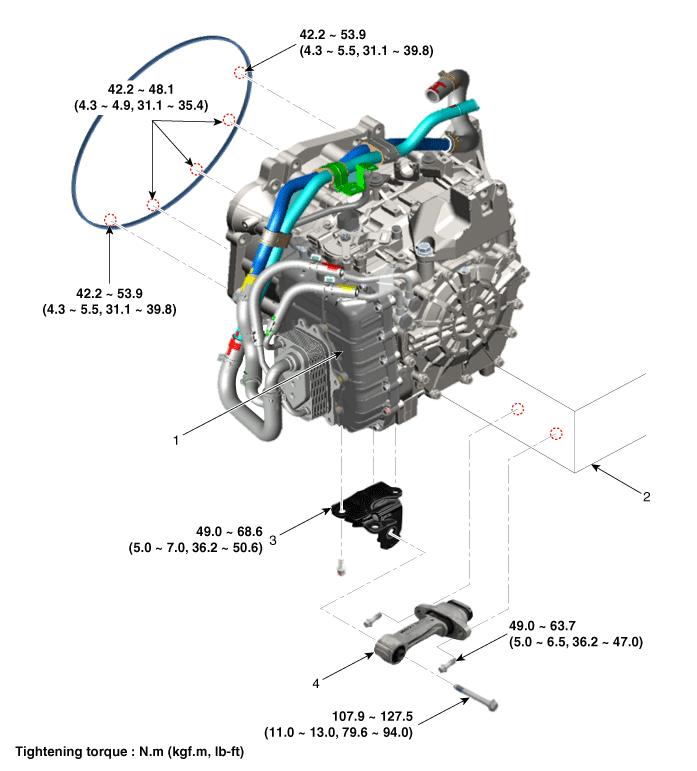

Components Location(2)

1. Automatic transaxle assembly
2. Subframe assembly

3. Roll rod support bracket
4. Roll rod bracket
