Hyundai Elantra: Audio / Audio Remote Control Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Audio / Audio Remote Control Schematic Diagrams

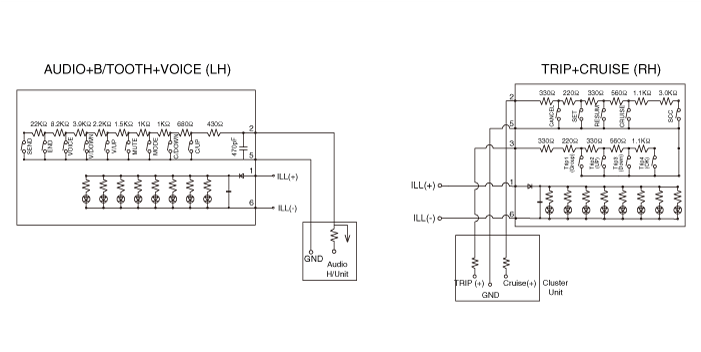

Circuit Diagram

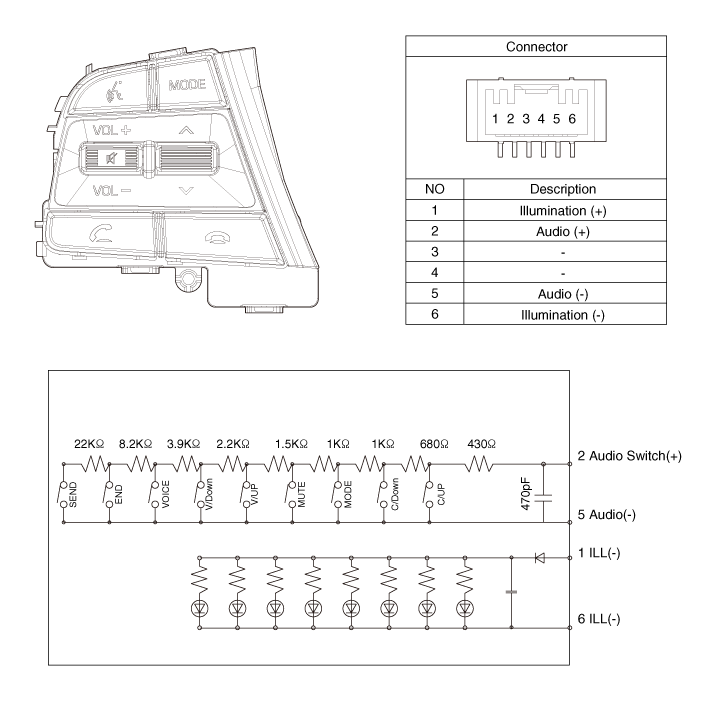

[Audio + B/Tooth + Voice]

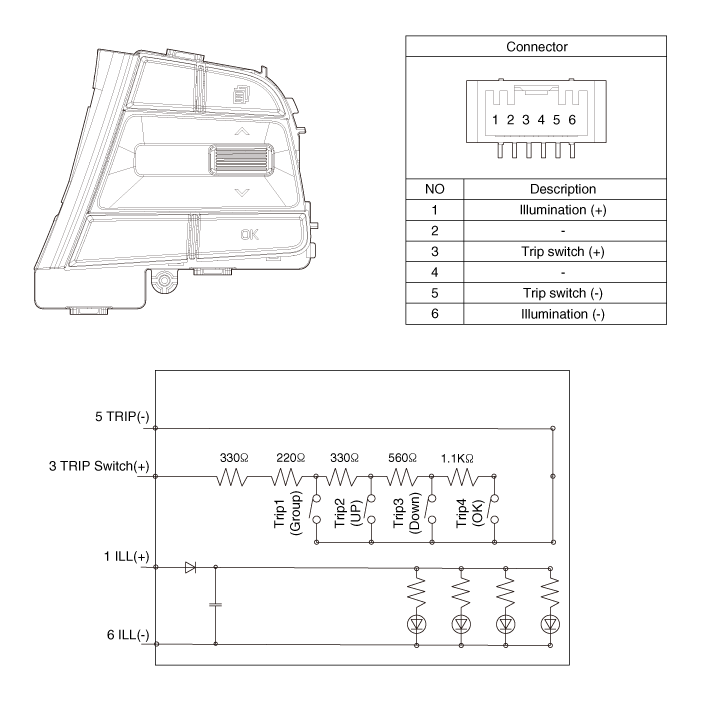

[Trip]

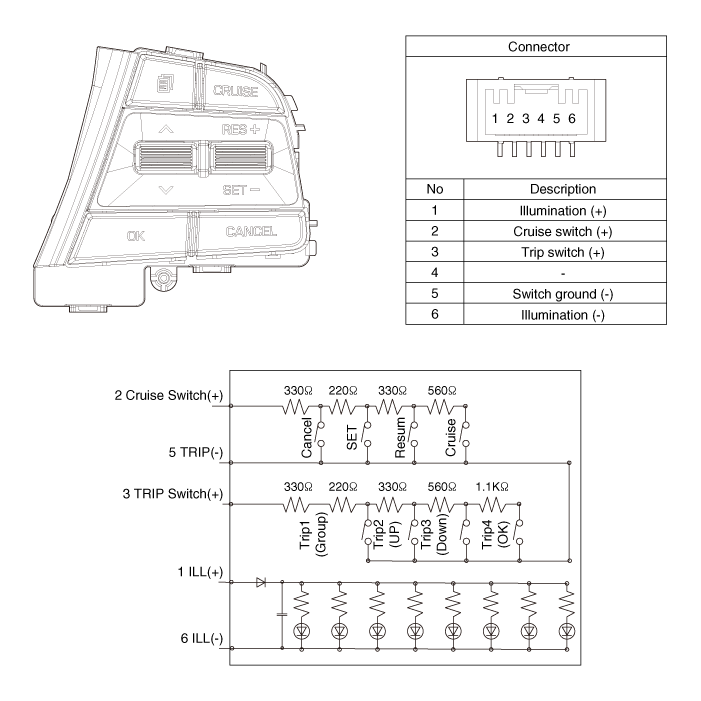

[Trip / Cruise]

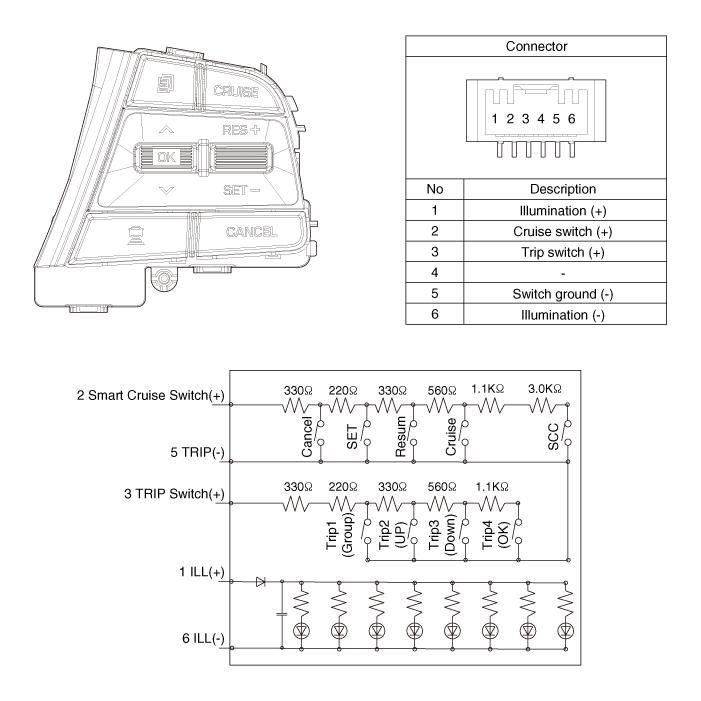

[Trip / Cruise/ Smart Cruise]

Audio Remote Control Components and Components Location
Components 1. Left Remote Control Switch (Audio + Hands free)2. Right Remote Control Switch(Cruise+Trip Computer) ...

Audio Remote Control Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnector terminalResistance(±5%)SEEK Up2-5430 ?SEEK Down1.11 k?MODE2.11 k?MUT ...
