Component Location

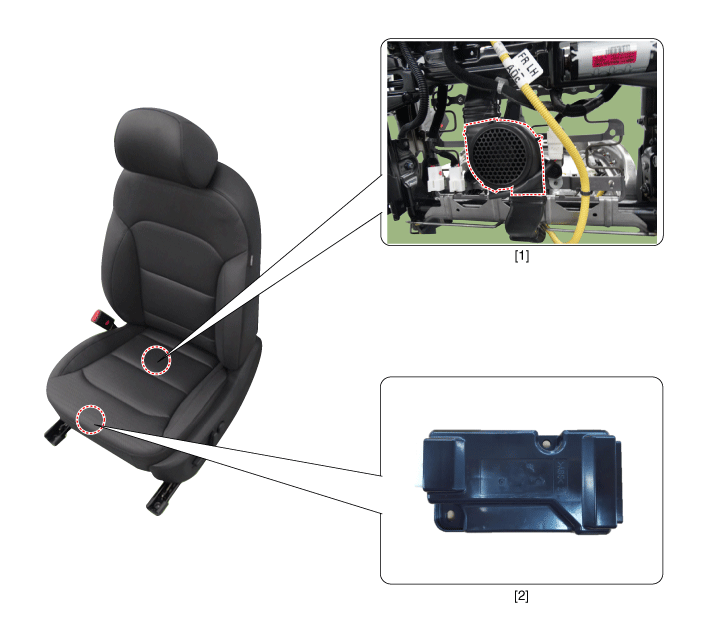

[Front Ventilation Seat]

1. Ventilation seat unit (Assist seat only)

2. Ventilation seat blower

Seat Heater Switch Repair procedures

Removal [Front Seat] 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console assembly. (Refer to Body - "Floor Console Assembly") [Rear Seat] 1. Disconnect the nega ...

Air Ventilation Seat Schematic Diagrams

Circuit Diagram ...
