Hyundai Elantra: Mirrors / Side View Mirrors
Be sure to adjust mirror angles before driving.

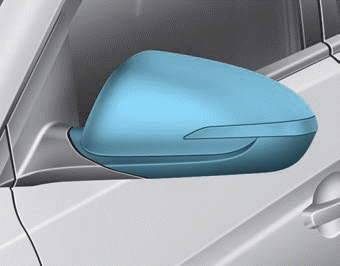

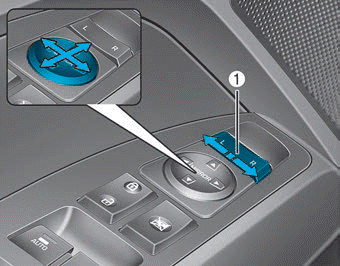

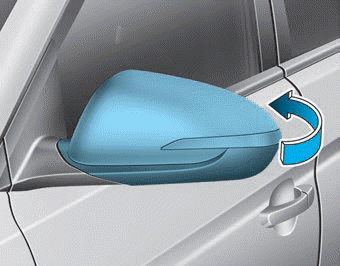

Your vehicle is equipped with both left-hand and right-hand side view mirrors. The mirrors can be adjusted remotely with the remote switch. The mirror heads can be folded to prevent damage during an automatic car wash or when passing through a narrow street.
The right side view mirror is convex. Objects seen in the mirror are closer than they appear.
Use your interior side view mirror or direct observation to determine the actual distance of following vehicles when changing lanes.
WARNING
Do not adjust or fold the side view mirrors while driving. This may cause loss of vehicle control resulting in an accident.
NOTICE
- Do not scrape ice off the mirror face; this may damage the surface of the glass.
- If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved spray de-icer (not radiator antifreeze) spray, or a sponge or soft cloth with very warm water, or move the vehicle to a warm place and allow the ice to melt.
Electric chromic mirror (ECM) with HomeLink® system and Blue Link®
Your vehicle may be equipped with a Gentex Automatic-Dimming Mirror and an Integrated
HomeLink® Wireless Control System. During nighttime driving, this feature will automatically
detect and reduc ...

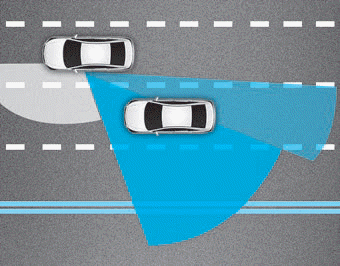

Blind spot mirror
The Blind Spot Mirror (BSM) is a supplemental mirror that reduces the driver's
blind spot by showing the rear side area of the vehicle. The blind spot mirror is
equipped on the left-hand s ...
