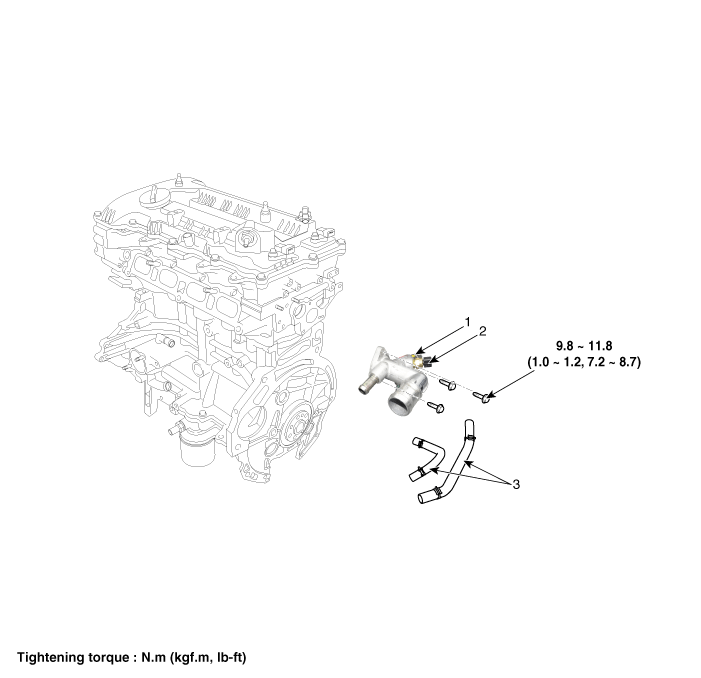

Components

1. Water temperature control assembly
2. Engine coolant temperature sensor
3. Throttle body coolant hose (if equipped)

Radiator Repair procedures
Inspection Radiator Cap Testing 1. Remove the radiator cap, wet its seal with engine coolant, and then install it on a pressure tester. 2. Apply a pressure of 93.16 ~ 122.58 kPa (0.95 ~ 1.25 ...

Water Temperature Control Assembly Repair procedures
Removal and Installation 1. Remove the engine cover. (Refer to Engine And Transaxle Assembly - “Engine Cover”) 2. Drain the engine coolant so its level is below water temperature control ...
