Hyundai Elantra: Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic Diagrams

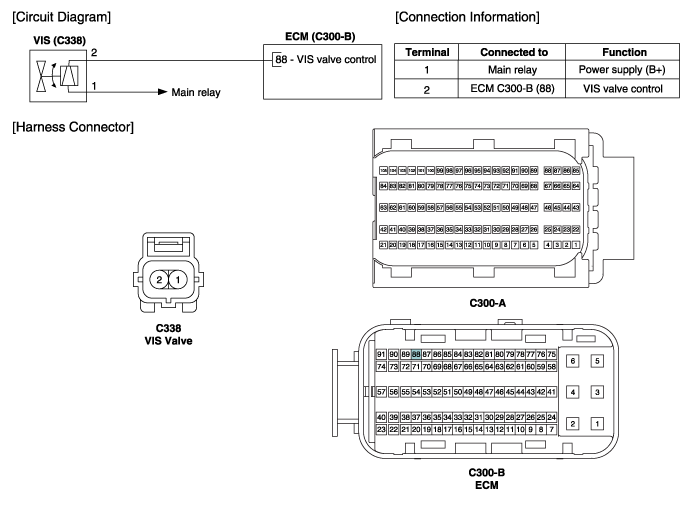

Circuit Diagram

Variable Intake Solenoid (VIS) Valve Specifications
Specification ItemSpecificationCoil resistance (?)30.0 ~ 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance between VIS valve terminals 1 and 2. Specification : Refer to "Specification" ...
