Hyundai Elantra: Interior Features / Power Outlet

Hyundai Elantra. Power Outlet

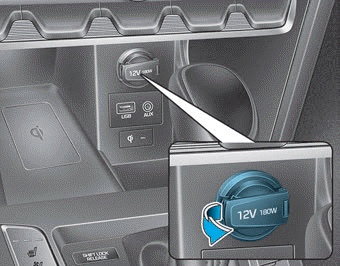

■ Type A

Hyundai Elantra. Power Outlet

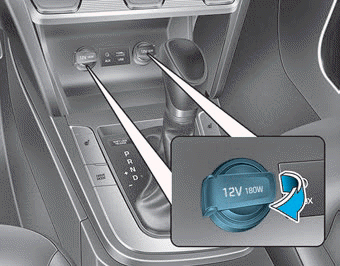

■ Type B

The power outlet is designed to provide power for mobile telephones or other devices designed to operate with vehicle electrical systems.

The devices should draw less than 180 W (Watts) with the engine running.

WARNING

Avoid electrical shocks. Do not place your fingers or foreign objects (pin, etc.) into a power outlet or touch the power outlet with a wet hand.

NOTICE

To prevent damage to the Power Outlets :
