Hyundai Elantra: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams

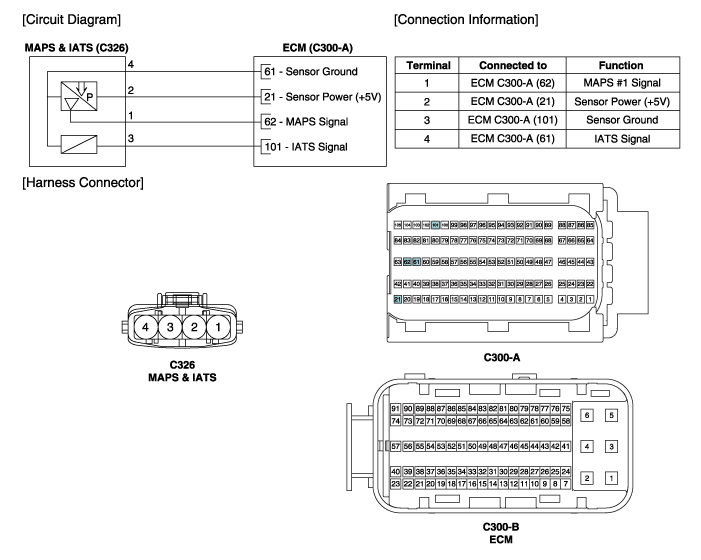

Circuit Diagram

Intake Air Temperature Sensor (IATS) Specifications
Specification Temperature [°C(°F)]Resistance (k?)-40(-40)40.93 ~ 48.35-20(-4)13.89 ~ 16.030(32)5.38 ~ 6.0910(50)3.48 ~ 3.9020(68)2.31 ~ 2.5740(104)1.08 ~ 1.2150(122)0.76 ~ 0.8560(140)0.54 ~ 0.6 ...

Intake Air Temperature Sensor (IATS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance between the IATS terminals 3 and 4. 4. Check that the resistance is within the speci ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Manifold Absolute Pressure Sensor (MAPS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. ConditionOutput Voltage (V)IG ON3.9 ~ 4.1Idle0.8 ~ 1.6 Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disco ...
