Hyundai Elantra: Head Restraints / Front seat head restraints

Hyundai Elantra. Front seat head restraints

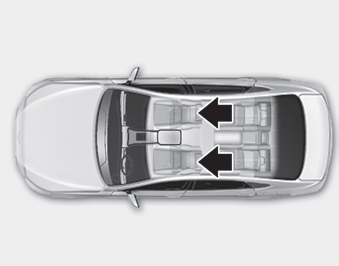

The vehicle's front and passenger's seats are equipped with adjustable head restraints for the passengers safety and comfort.

Hyundai Elantra. Front seat head restraints

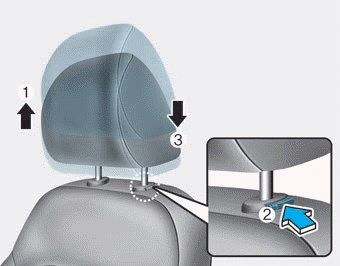

Adjusting the height up and down

To raise the head restraint:

1. Pull it up to the desired position (1).

To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. Lower the head restraint to the desired position (3).

NOTICE

Hyundai Elantra. Front seat head restraints

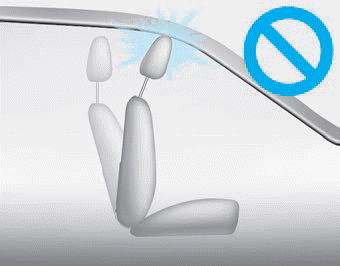

If you recline the seatback towards the front with the head restraint and seat cushion raised, the head restraint may come in contact with the sunvisor or other parts of the vehicle.

Hyundai Elantra. Front seat head restraints

■ Type A

Hyundai Elantra. Front seat head restraints

■ Type B

Removal/Reinstallation

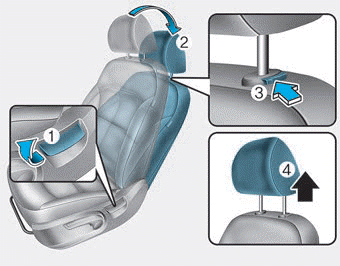

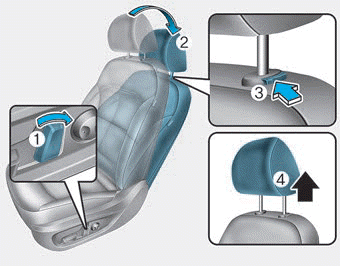

To remove the head restraint:

1. Recline the seatback (2) rearward using the seatback angle lever/ switch (1).

2. Raise the head restraint as far as it can go.

3. Press the head restraint release button (3) while pulling the head restraint up (4).

Hyundai Elantra. Front seat head restraints

■ Type A

Hyundai Elantra. Front seat head restraints

■ Type B

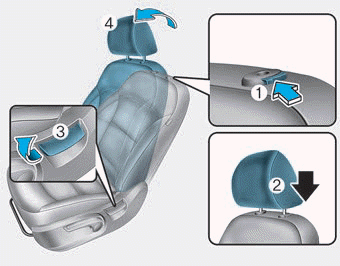

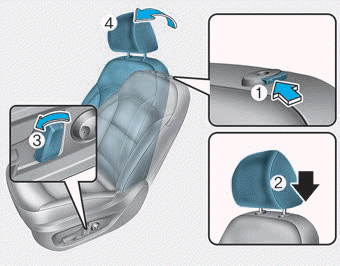

To reinstall the head restraint:

1. Put the head restraint poles (2) into the holes while pressing the release button (1).

2. Adjust the head restraint to the appropriate height.

3. Recline the seatback (4) forward using the seatback angle lever/ switch (3).
