Hyundai Elantra: Maintenance / Engine Oil

Checking the Engine Oil Level

1. Follow all of the oil manufacturer’s precautions.

2. Be sure the vehicle is on the level ground in P (Park) with the parking brake set. If possible, block the wheels.

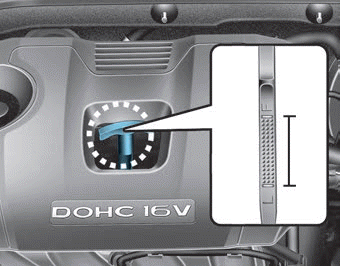

3. Turn the engine on and allow the engine to reach normal operating temperature.

4. Turn the engine off and wait about five minutes for the oil to return to the oil pan.

5. Pull the dipstick out, wipe it clean, and re-insert it fully.

Hyundai Elantra. Engine Oil

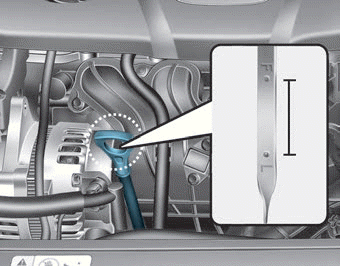

■ 1.6 T-GDI

Hyundai Elantra. Engine Oil

6. Pull the dipstick out again and check the level. The level should be between F and L.

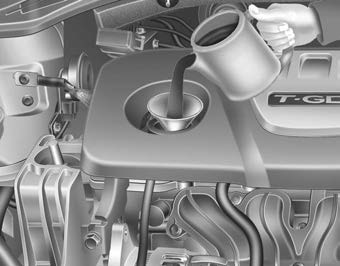

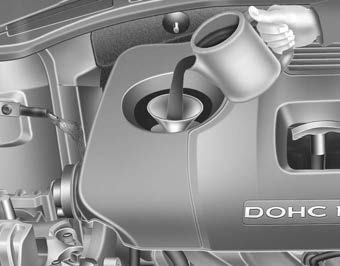

7. If it is near or at L, add enough oil to bring the level to F.

NOTICE

To prevent damage to your engine:

Hyundai Elantra. Engine Oil

■ 1.6 T-GDI

Hyundai Elantra. Engine Oil

■ 2.0 MPI

NOTICE

Use only the specified engine oil (refer to "Recommended Lubricants and Capacities" in chapter 8).

Explanation of Scheduled Maintenance Items
Engine Oil and Filter The engine oil and filter should be changed at the intervals specified in the maintenance schedule. If the car is being driven in severe conditions, more frequent oil and fi ...

Checking the Engine Oil and Filter
Have engine oil and filter changed by an authorized HYUNDAI dealer according to the Maintenance Schedule at the beginning of this chapter. WARNING CALIFORNIA PROPOSITION 65 WARNING Engine oil c ...
