Hyundai Elantra: Maintenance / Engine Coolant
The high-pressure cooling system has a reservoir filled with year-round antifreeze coolant. The reservoir is filled at the factory.

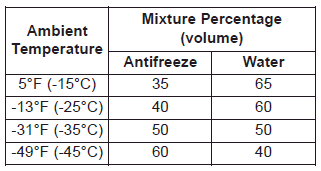

Check the antifreeze protection and coolant level at least once a year, at the beginning of the winter season and before traveling to a colder climate.
Checking the Engine Oil and Filter
Have engine oil and filter changed by an authorized HYUNDAI dealer according
to the Maintenance Schedule at the beginning of this chapter.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine oil c ...

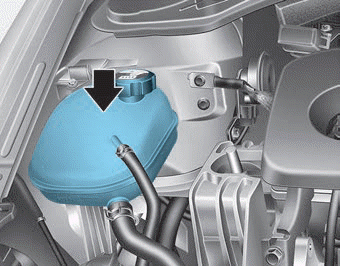

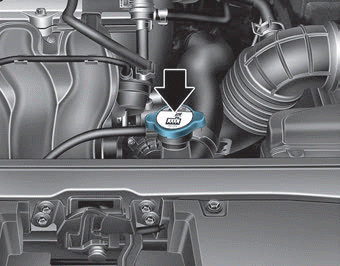

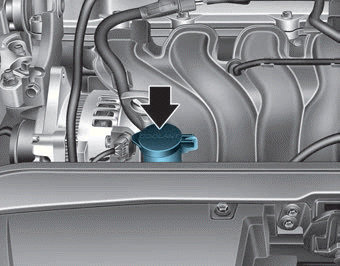

Checking the Engine Coolant Level
■ 1.6 T-GDI
■ 2.0 MPI
Check the condition and connections of all cooling system hoses and heater hoses.
Replace any swollen or deteriorated hoses.
The coolant level should be filled betwe ...
