Hyundai Elantra: Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and Components Location

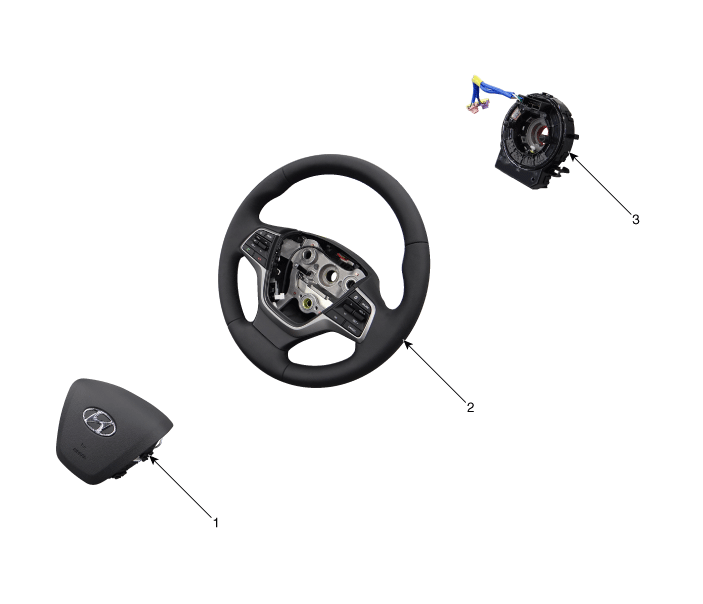

Components

1. Driver Air Bag (DAB)
2. Steering Wheel
3. Clock Spring

Airbag Module
...

Driver Airbag (DAB) Module and Clock Spring Description and Operation
Description • Driver Air Bag (DAB) DAB is installed in the steering wheel, and electrically connected to the SRSCM via clock spring. It is deployed during frontal impact to protect the dr ...
