Description

•	Engine coolant is used for circulating heat in order to heat and cool the transaxle oil.

•	Prevents over heating of the transaxle oil while the vehicle is moving.

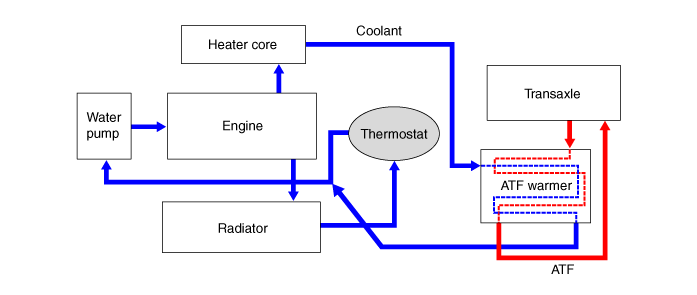

Coolant Flow

Automatic Transaxle Cooling System

...

ATF Warmer Description and Operation

Description • The ATF warmer is mounted on the valve body cover. • Engine coolant is used for circulating heat in order to heat and cool t he transaxle oil. • Rapidly elevate ...
