Hyundai Elantra: Cylinder Head Assembly / CVVT & Camshaft Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cylinder Head Assembly / CVVT & Camshaft Components and Components Location

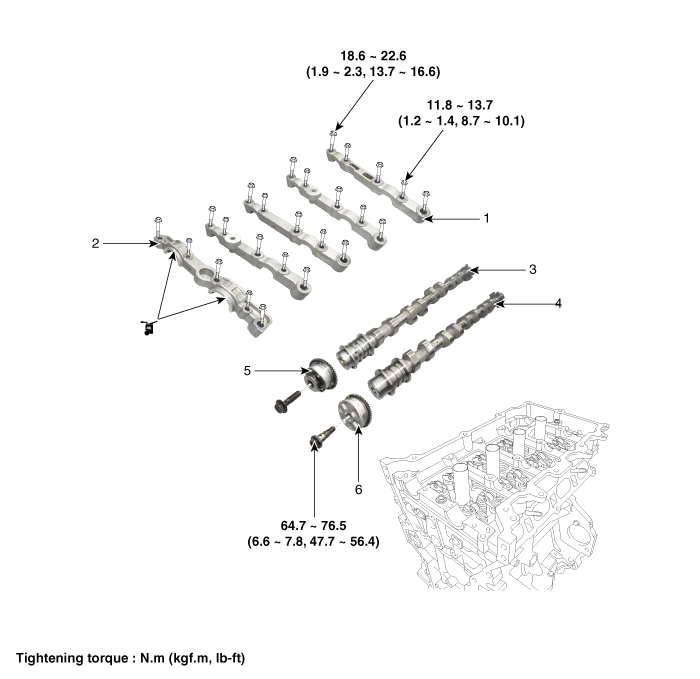

Components

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft

4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly

Cylinder Head Cover Repair procedures

Removal • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. ...

CVVT & Camshaft Description and Operation

Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by ...
