Components

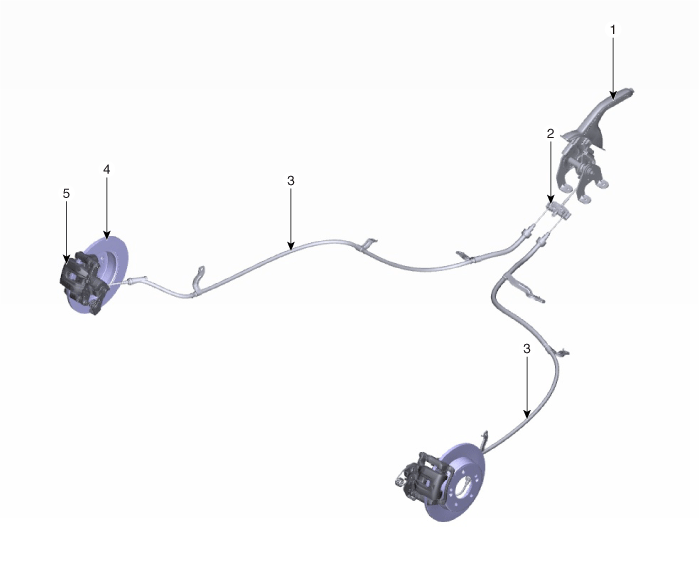

[Disc type]

1. Parking brake lever
2. Equalizer assembly
3. Parking brake cable

4. Brake disc
5. Brake caliper

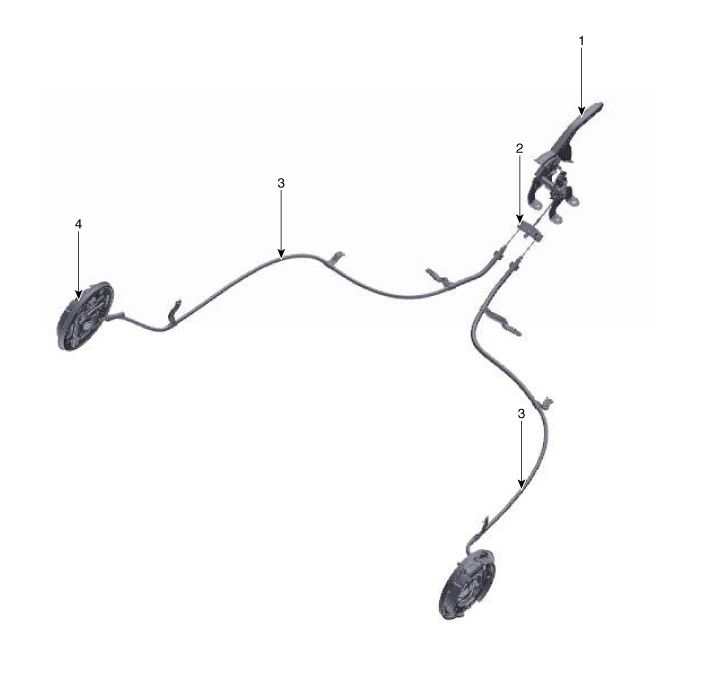

[Drum type]

1. Parking brake lever
2. Equalizer assembly

3. Parking brake cable
4. Drum brake

Parking Brake System

...

Parking Brake Lever Repair procedures

Removal 1. Disconnect the negative (-) battery cable. 2. Release the parking brake. 3. Remove the floor console assembly. (Refer to Body - "Floor console") 4. Disconnect the connect ...
