Hyundai Elantra: Charging System / Components and Components Location

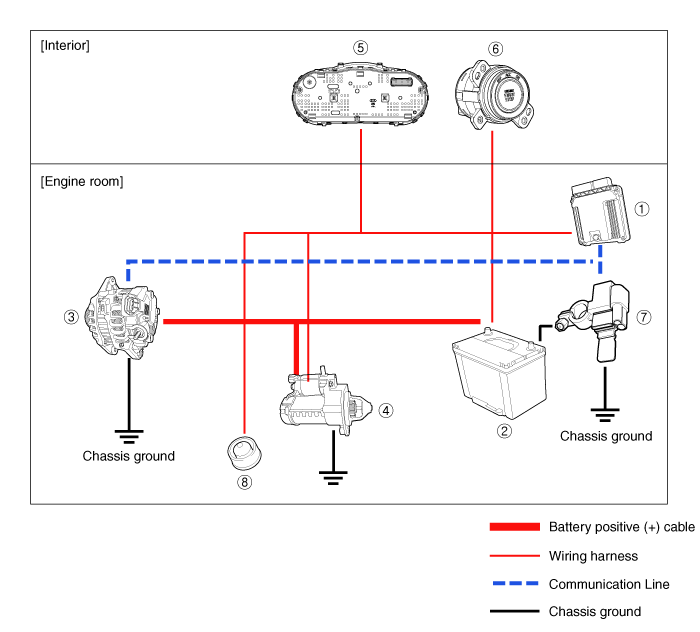

Components

ECM
Battery
Alternator
Starter
Instrument Cluster
Ignition switch or start/stop button
Battery sensor
Hood switch
Charging System
...

Description and Operation
Description The charging system included a battery, an alternator with a built-in regulator, and the charging indicator light and wire. The Alternator has eight built-in diodes, each rectifying AC ...
